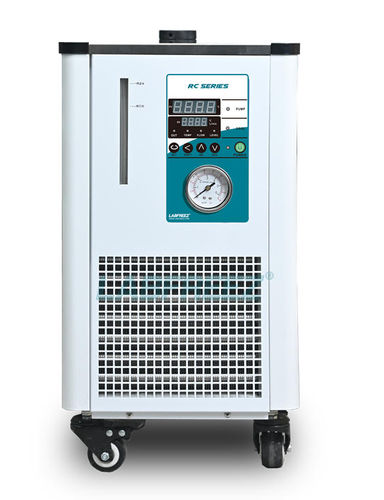

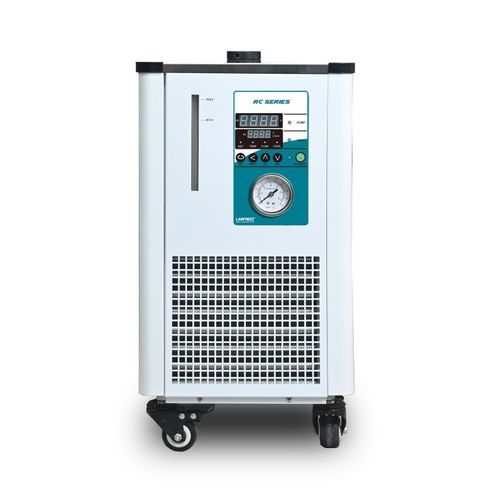

Water chiller RC series

for laser applicationsfor the pharmaceutical industrylaboratory

Features:

• Ultra-compact design: RC150 comparable to a magazine, RC300 comparable to a computer host.
• Closed cooling and circulation system for stable, continuous operation.
• LED digital display for temperature and pressure, plus water level indicator and alarm status.
• PID control with adaptive self-learning algorithm; simple temperature calibration.
• Low-noise design suitable for laboratory and production environments.
• Combined functions: thermostat, cooling and circulation in one unit.
• High-quality components for accuracy and long-term stability.
• Standard stainless-steel inlet/outlet; various adapters or hoses available.
• Optional RS485 communication interface.

Typical Application:

• Laboratory & biotechnology: cooling for calorimeters, refractometers, density detectors, viscometers, rotary evaporators, reactors, mass spectrometers, X-ray equipment, etc.
• Healthcare & medical research: molecular pumps, clinical instruments and related equipment.
• Industrial: laser systems, vacuum furnaces, vacuum coating equipment, biopharmaceutical molding, welding machines, reactors and other process equipment.

Technical Parameters (table):
Model | RC150 | RC300 | RC300P
Temp. Range | 5 ~ 35°C | 5 ~ 35°C | 5 ~ 35°C
Temp. Fluctuation | ±0.1°C | ±0.1°C | ±0.1°C
Cooling power | 150 W @ 20°C | 300 W @ 20°C | 300 W @ 20°C
Tank Capacity | 1.0 liters | 4.0 liters | 4.0 liters
Maximum Pressure | 0.3 bar | 0.8 bar | 0 ~ 4 bar (Adjustable)
Maximum Flow | 10 L/min | 15 L/min | 15 L/min
Port size | 1/4" NPT | 1/2" NPT | 1/2" NPT
Dimensions (W×D×H) | 230 × 280 × 380 mm | 230 × 475 × 475 mm | 230 × 475 × 475 mm
Power | AC220V, 50Hz, 5A | AC220V, 50Hz, 10A | AC220V, 50Hz, 10A
Weight | 18 kg | 39 kg | 39 kg
Work | continuous | continuous | continuous

Note:
RC300 can be customized for laser applications.

Technical specifications:

• Series: RC series (models RC150, RC300, RC300P).
• Temperature range: 5 ~ 35°C (all models).
• Temperature stability: ±0.1°C.
• Cooling capacity: RC150 = 150 W @ 20°C; RC300 / RC300P = 300 W @ 20°C.
• Tank capacity: RC150 = 1.0 L; RC300 / RC300P = 4.0 L.
• Max pressure: RC150 = 0.3 bar; RC300 = 0.8 bar; RC300P = 0–4 bar (adjustable).
• Max flow: RC150 = 10 L/min; RC300/RC300P = 15 L/min.
• Connections: 1/4" NPT (RC150) or 1/2" NPT (RC300/RC300P).
• Dimensions and power as listed above; designed for continuous operation with PID control, LED displays and optional RS485.
