Heated thermostatic bath HB series
digital displaycirculationautomatic

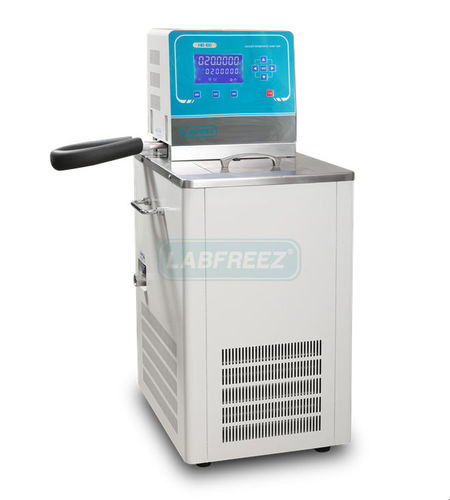

Heated thermostatic bath - HB series - Labfreez Instruments Group Co., Ltd - digital display / circulation / automatic

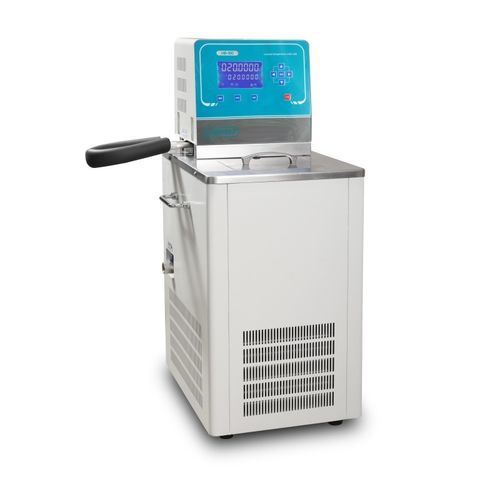

Heated thermostatic bath - HB series - Labfreez Instruments Group Co., Ltd - digital display / circulation / automatic

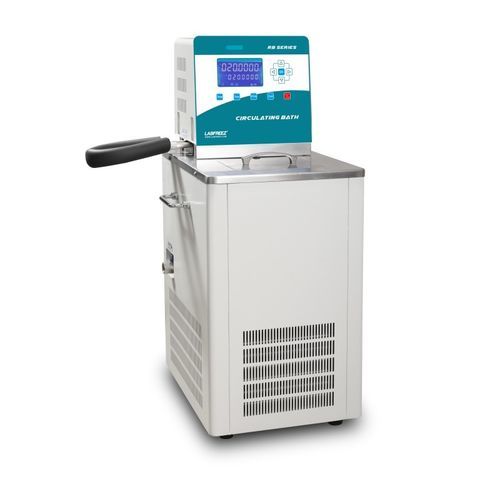

Heated thermostatic bath - HB series - Labfreez Instruments Group Co., Ltd - digital display / circulation / automatic - image - 2
Add to favorites
Compare this product
Go to the Labfreez Instruments Group Co., Ltd website for more information

Characteristics

Options
digital display, circulation, heated, automatic, constant temperature
Product applications
with temperature control, for temperature control circuits
Domain
laboratory, for the chemical industry, for the semiconductor industry, for the electronics industry
Temperature

Max.: 300 °C
(572 °F)

Min.: 100 °C
(212 °F)

Description

Short description
  • HB Series high-precision temperature heating bath
  • Circulating water/oil bath with internal or external circulation
  • Temperature ranges: RT to +100°C / RT to +200°C / RT to +300°C; control accuracy ±0.05°C
  • Available volumes: 5 L to 100 L


Description
  • Microcomputer PID control system for rapid heating and stable temperature; easy operation with touch keys
  • Dual-purpose water and oil operation ranges (models with suffix A = RT–200, D = RT–300)
  • LED dual-window digital display shows both measured and set temperatures; display resolution 0.01°C or 0.1°C
  • Internal circulation ensures uniform bath temperature; external circulation via pump supplies heated fluid to external equipment
  • Optional connection to a cold-water circulator or running water for fast cooling; suitable for controlling high-temperature exothermic reactions
  • Designed for electronic testing, chemical reactions, high-temperature distillation and semiconductor processes


Product features
  • Energy-efficient operation: recover and recycle system water in cold environments
  • Continuous supply capability: supports cooling multiple external devices simultaneously; suitable for condensation tests
  • High precision temperature control using PID with built-in PT100 sensor; intuitive digital display
  • Comprehensive safety: self-diagnosis and refrigeration overcurrent protection


Safety protection device
  • Power protection function
  • Upper and lower temperature alarm settings
  • Low water-level protection and alarm
  • Temperature out-of-control protection and alarm
  • Heating protection: low-water anti-dry and explosion-proof measures


Specifications of High Precision Temperature Heating Bath
  • HB-5 — RT–100 — ±0.05°C — Sink 275×190×120 mm — Volume 5 L — Inner circulation — Front opening 180×140 mm — Drainage: yes
  • HB-5A — RT–200 — ±0.05°C — Sink 275×190×120 mm — Volume 5 L — Inner circulation — Front opening 180×140 mm — Drainage: yes
  • HB-5D — RT–300 — ±0.05°C — Sink 275×190×120 mm — Volume 5 L — Inner circulation — Front opening 180×140 mm — Drainage: no
  • HB-10 — RT–100 — ±0.05°C — Sink 275×195×180 mm — Volume 10 L — Inner circulation — Front opening 180×140 mm — Drainage: yes
  • HB-10A — RT–200 — ±0.05°C — Sink 275×195×180 mm — Volume 10 L — Inner circulation — Front opening 180×140 mm — Drainage: yes
  • HB-10D — RT–300 — ±0.05°C — Sink 275×195×180 mm — Volume 10 L — Inner circulation — Front opening 180×140 mm — Drainage: no
  • HB-15 — RT–100 — ±0.05°C — Sink 300×250×200 mm — Volume 15 L — Outer circulation 6 L/min — Front opening 235×160 mm — Drainage: yes
  • HB-15A — RT–200 — ±0.05°C — Sink 300×250×200 mm — Volume 15 L — Inner circulation — Front opening 235×160 mm — Drainage: yes
  • HB-15D — RT–300 — ±0.05°C — Sink 300×250×200 mm — Volume 15 L — Inner circulation — Front opening 235×160 mm — Drainage: no
  • HB-20 — RT–100 — ±0.05°C — Sink 300×250×270 mm — Volume 20 L — Outer circulation 6 L/min — Front opening 235×160 mm — Drainage: yes
  • HB-20A — RT–200 — ±0.05°C — Sink 300×250×270 mm — Volume 20 L — Inner circulation — Front opening 235×160 mm — Drainage: yes
  • HB-20D — RT–300 — ±0.05°C — Sink 300×250×270 mm — Volume 20 L — Inner circulation — Front opening 235×160 mm — Drainage: no
  • HB-25 — RT–100 — ±0.05°C — Sink 300×250×335 mm — Volume 25 L — Outer circulation 6 L/min — Front opening 235×160 mm — Drainage: yes
  • HB-25A — RT–200 — ±0.05°C — Sink 300×250×335 mm — Volume 25 L — Inner circulation — Front opening 235×160 mm — Drainage: yes
  • HB-25D — RT–300 — ±0.05°C — Sink 300×250×335 mm — Volume 25 L — Inner circulation — Front opening 235×160 mm — Drainage: no
  • HB-30 — RT–100 — ±0.05°C — Sink 440×325×210 mm — Volume 30 L — Outer circulation 6 L/min — Front opening 310×280 mm — Drainage: yes
  • HB-30A — RT–200 — ±0.05°C — Sink 440×325×210 mm — Volume 30 L — Inner circulation — Front opening 310×280 mm — Drainage: yes
  • HB-30D — RT–300 — ±0.05°C — Sink 440×325×210 mm — Volume 30 L — Inner circulation — Front opening 310×280 mm — Drainage: no
  • HB-40 — RT–100 — ±0.05°C — Sink 500×340×240 mm — Volume 40 L — Outer circulation 6 L/min — Front opening 350×300 mm — Drainage: yes
  • HB-40A — RT–200 — ±0.05°C — Sink 500×340×240 mm — Volume 40 L — Inner circulation — Front opening 350×300 mm — Drainage: yes
  • HB-40D — RT–300 — ±0.05°C — Sink 500×340×240 mm — Volume 40 L — Inner circulation — Front opening 350×300 mm — Drainage: no
  • HB-50 — RT–100 — ±0.05°C — Sink 500×340×300 mm — Volume 50 L — Outer circulation 6 L/min — Front opening 350×300 mm — Drainage: yes
  • HB-50A — RT–200 — ±0.05°C — Sink 500×340×300 mm — Volume 50 L — Inner circulation — Front opening 350×300 mm — Drainage: yes
  • HB-50D — RT–300 — ±0.05°C — Sink 500×340×300 mm — Volume 50 L — Inner circulation — Front opening 350×300 mm — Drainage: no
  • HB-100 — RT–100 — ±0.05°C — Sink 625×400×400 mm — Volume 100 L — Outer circulation 6 L/min — Front opening 480×380 mm — Drainage: yes
  • HB-100A — RT–200 — ±0.05°C — Sink 625×400×400 mm — Volume 100 L — Inner circulation — Front opening 480×380 mm — Drainage: yes
  • HB-100D — RT–300 — ±0.05°C — Sink 625×400×400 mm — Volume 100 L — Inner circulation — Front opening 480×380 mm — Drainage: no


Technical specifications
  • Series: HB Series
  • Temperature ranges: RT–100°C, RT–200°C (A models), RT–300°C (D models)
  • Temperature fluctuation / control accuracy: ±0.05°C
  • Control: Microcomputer PID with built-in PT100 sensor; LED dual-window digital display (resolution 0.01°C or 0.1°C)
  • Circulation: internal circulation standard; selected sizes provide external circulation (6 L/min)
  • Volume range: 5 L to 100 L depending on model
  • Sink dimensions and front opening vary by model (see specifications list)
  • Drainage: most base models include drainage; some high-temperature variants (D models) do not
  • Applications: electronic testing, chemical reactions, high-temperature distillation, semiconductor processes, temperature control for external equipment via circulating pump
