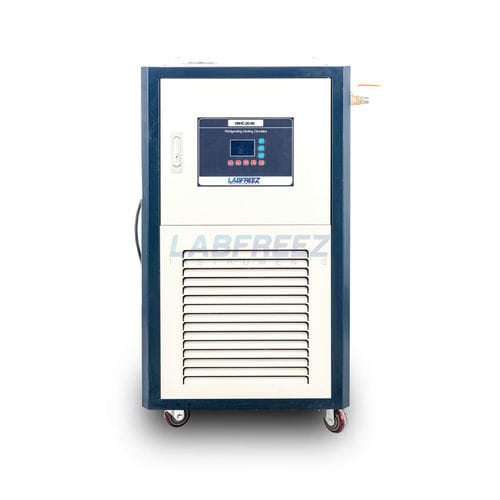

Refrigerated heating circulator HRHC-200-40

for high temperatures

Description
HRHC Series hermetic refrigerating heating circulator chiller-heater is an integrated heating-and-cooling circulating system designed for controlled temperature rise and fall in jacketed reactors and similar process equipment. The unit combines refrigeration and electric heating into one machine to provide precise thermal management across a wide range of industrial applications.

Design and operation
The complete heat-transfer loop operates in a fully closed liquid cycle with a mechanically connected but circulation-independent expansion vessel. The expansion medium temperature remains ≤50°C even during high-temperature operation. The closed circuit prevents water vapor absorption at low temperatures and eliminates oil mist formation at high temperatures, extending the service life of the heat-transfer medium. With appropriate transfer fluid the same equipment can achieve continuous control from -95°C to +350°C. Available cooling capacity range: 1 kW to 100 kW.

Key features

• Integrated refrigeration and heating for dynamic, single-unit temperature control
• Fully closed circulation system with independent expansion vessel
• Prevents water vapor ingress at low temperatures and oil mist at high temperatures
• Very wide achievable temperature span with suitable heat-transfer fluid (-95°C to +350°C)
• Designed for jacketed reactors and process equipment requiring precise temperature cycling

Technical specifications

• Model: HRHC-200-40
• Suitable reactor capacity: 200 L
• Tank capacity: 50 L
• Temperature range: -40 to +200 °C
• Ambient temperature: 5 to 35 °C
• Environment humidity: ≤70%
• Power supply: 3P 380V ±10% / 50Hz
• Total power: 26,360 W; Heating power: 18,000 W
• Compressor: fully enclosed, 1 unit, 7,360 W
• Cooling capacity: 22,080 W @30°C; 13,248 W @10°C; 8,832 W @0°C; 2,940 W @-20°C; 368 W @-40°C
• Circulating pump: 750 W; lift 28 m; flow 56 L/min; pressure ≤0.2 MPa
• Refrigerant: R22 (replaceable)
• Display: LCD with key operation; Sensor: PT100; Control accuracy: ±1°C
• Construction: cold plate spray anticorrosion finish
• Outer loop interface: 6-point connector with two 6-point × 3 m metal circulating pipes
• Recommended circulating fluid: Grade A silicone oil (not included)
• Machine size (W×D×H): 829 × 1071 × 1410 mm; Net weight: 243 kg; Package size: 1190 × 880 × 1530 mm; Package weight: 310 kg
