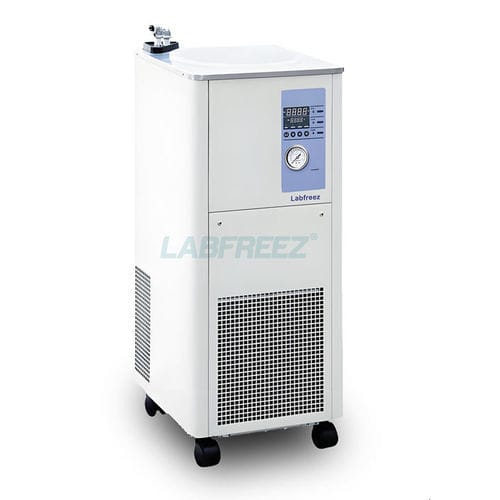

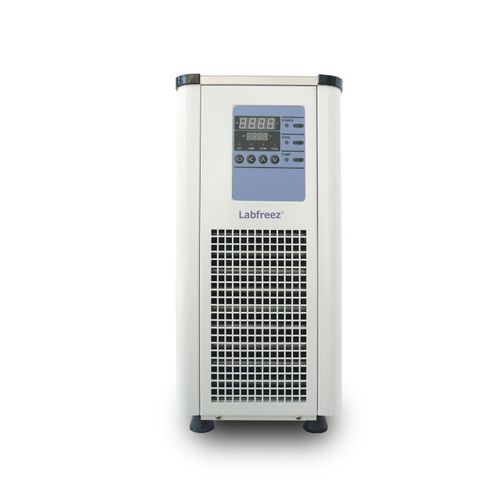

Air cooler LRC series

for refrigerationfor circulating bathsfor the pharmaceutical industry

Product overview
Compact low-temperature circulating chiller for laboratory and industrial bench applications. Compressor-cooled unit with integrated bath for direct immersion or external circulation. Temperature performance varies by model, with ranges from typical -20°C down to -50°C and temperature control accuracy to ±0.1°C (model-dependent). Designed for continuous operation and process cooling tasks.

Key features

• Dual operation modes: external circulation or open bath for direct immersion
• Vertical footprint for space-efficient installation; user-friendly interface
• Non start-stop refrigeration combined with microprocessor PID control for rapid, stable temperature control
• Display of temperature, pressure and liquid level; software lock to protect settings
• Enclosed air-cooled compressor with delay, overheat and over-current protection for reliable service
• Bath and condenser manufactured in SUS304 stainless steel; multiple stainless steel interfaces and hose fittings available
• Suitable for continuous 24×365 operation where specified

Applications
Engineered for low-temperature laboratory processes and industrial bench usage: rotary evaporators, fermenters, low-temperature chemical reactions, biopharmaceutical reactors, analytical instruments and other applications requiring precise temperature control of circulated fluids.

Specifications (table 1)
Model | LRC-204 | LRC-208 | LRC-2010 | LRC-2015 | LRC-2025 | LRC-406 | LRC-4010 | LRC-4015
Temp. range | -20~40°C | -20~40°C | -20~40°C | -20~35°C | -20~35°C | -40~20°C | -40~20°C | -40~20°C
Temp. Accuracy | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.2°C | ±0.1°C | ±0.1°C | ±0.1°C
Capacity (L) | 4 | 8 | 10 | 15 | 25 | 6 | 10 | 15
Flow rate (L/min) | 15 | 15 | 15 | 15 | 15 | 15 | 10 | 10
Max Pressure (bar) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.3 | 0.3 | 0.3
Bath size (cm) | 14×24×15 | Φ25*20 | Φ25*20 | Φ30*25 | Φ35*26 | Φ20*20 | Φ25*25 | Φ30*25
Inlet/outlet size | 1/2''NPT | 3/8''NPT | 3/8''NPT | 3/8''NPT | 3/8''NPT | 3/8''NPT | 3/8''NPT | 3/8''NPT
Dimensions (WxDxH mm) | 230×485×500 | 300×400×720 | 300×400×720 | 365×405×865 | 425×465×1125 | 300×400×720 | 365×405×880 | 425×465×1125
Weight | 26 kg | 38 kg | 45 kg | 46 kg | 68 kg | 39 kg | 44 kg | 51 kg
Cooling Power (@20°C) | 300 W | 600 W | 800 W | 1600 W | 3000 W | 300 W | 600 W | 1000 W
Work | Continuous (24*365) (applies to all listed models)
Voltage | AC220V, 50Hz, 10A (applies to listed models)

Specifications (table 2)
Model | LRC-1000 | LRC-2000 | LRC-3000 | LRC-4000 | LRC-5000 | LRC-1111
Lowest Temp. | -20~30°C | -20~30°C | -20~30°C | -40~30°C | -50~30°C | -20~30°C
Temp. Accuracy | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C
Tank Capacity (L) | 8 | 14 | 25 | 20 | 20 | 15
Max flow (L/min) | 28 | 28 | 28 | 28 | 28 | 15
Max pressure (bar) | 2 | 2 | 2 | 2 | 2 | 0.8
Bath size (mm) | Ø250×190 | Ø300×210 | Ø350×260 | Ø300×300 | Ø300×300 | Ø300×250
Dimensions (WxDxH mm) | 345×620×585 | 385×650×685 | 430×750×750 | 500×1000×1090 | 500×1000×1090 | 365×405×880
Weight | 51 kg | 69 kg | 73 kg | 82 kg | 89 kg | 46 kg
Cooling Power @20°C | 1000 W | 2000 W | 3000 W | 4000 W | 5000 W | 1200 W @10°C
Inlet/outlet port size | 1/2''NPT | 1/2''NPT | 1/2''NPT | 3/4''NPT | 3/4''NPT | 3/8''NPT

Technical specifications and notes

• Series / model: LRC Series (models listed above)
• Temperature ranges: typical -20°C to 40°C; extended models down to -40°C and -50°C (model-dependent)
• Temperature accuracy: typically ±0.1°C (some models ±0.2°C)
• Flow rates and maximum pressures vary by model (10–28 L/min; up to 2 bar)
• Materials: bath and condenser SUS304 stainless steel
• Control: microprocessor PID control with display; software lock included
• Compressor: enclosed air-cooled compressor with protection functions
• Power supply: AC220V, 50Hz as specified for listed models
