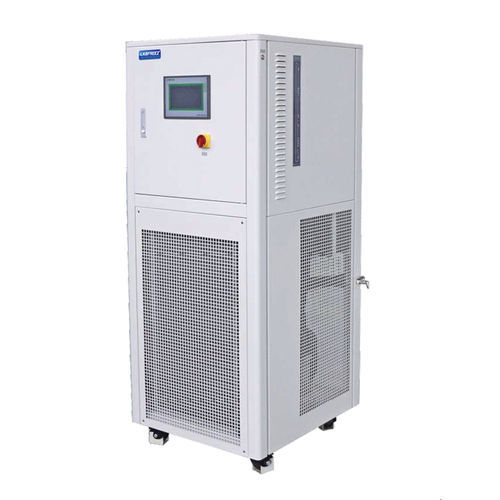

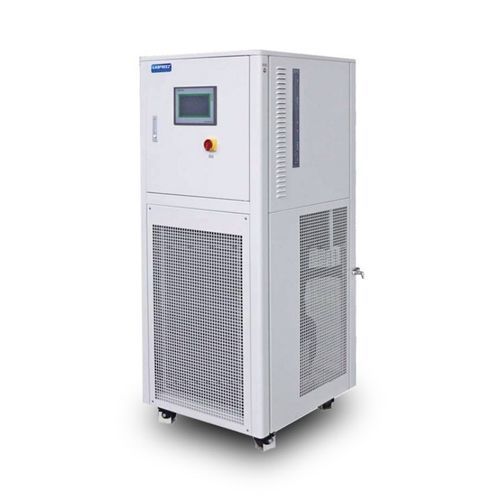

Liquid cooler LRC-65
industriallaboratorystainless steel

Liquid cooler - LRC-65 - Labfreez Instruments Group Co., Ltd - industrial / laboratory / stainless steel
Liquid cooler - LRC-65 - Labfreez Instruments Group Co., Ltd - industrial / laboratory / stainless steel
Liquid cooler - LRC-65 - Labfreez Instruments Group Co., Ltd - industrial / laboratory / stainless steel - image - 2
Liquid cooler - LRC-65 - Labfreez Instruments Group Co., Ltd - industrial / laboratory / stainless steel - image - 3
Liquid cooler - LRC-65 - Labfreez Instruments Group Co., Ltd - industrial / laboratory / stainless steel - image - 4
Liquid cooler - LRC-65 - Labfreez Instruments Group Co., Ltd - industrial / laboratory / stainless steel - image - 5
Liquid cooler - LRC-65 - Labfreez Instruments Group Co., Ltd - industrial / laboratory / stainless steel - image - 6
Add to favorites
Compare this product
Go to the Labfreez Instruments Group Co., Ltd website for more information

Characteristics

Material
liquid
Applications
industrial, laboratory
Other characteristics
stainless steel, electric, high-performance, with water pump
Power

Min.: 0.4 kW

Max.: 7.2 kW

Maximum temperature

Min.: -65 °C
(-85 °F)

Max.: -20 °C
(-4 °F)

Flow rate

Min.: 2.1 m³/h
(74.161 ft³/h)

Max.: 6.6 m³/h
(233.077 ft³/h)

Pressure

Min.: 100,000 Pa
(14.504 psi)

Max.: 600,000 Pa
(87.023 psi)

Description

Overview
Closed-circuit circulating chiller for industrial use providing stable temperatures from -65°C to -20°C while preventing contamination of the heat-transfer fluid.

Key features
  • Closed-loop pipeline design prevents circulating fluid contamination and extends heat-transfer liquid life.
  • Cascade refrigeration architecture with brand compressors (Tecumseh / Copeland) and an efficient two-condensate system.
  • ASET multifunctional controller with PT100 sensor and 7-inch color touch screen; temperature resolution 0.1°C; temperature curve recording and Excel export.
  • Computer-cascade temperature control; adjustable compressor on/off differential; monitoring of ambient temperature to protect system stability.
  • High-performance circulating pump for 24/7 operation; available pump options for higher flow/pressure.
  • Comprehensive safety package: multi-level protections and alarms (over-temperature, sensor fault, high pressure, compressor overheat, liquid level), power-on delay and equipment grounding.
  • Plate heat exchanger and copper-tube evaporator for effective heat transfer; refrigerant R-404A.


Technical specifications
  • Series / models: LRC-65 Series — LRC-6018, LRC-6030, LRC-6062, LRC-6090, LRC-60A1, LRC-60A2.
  • Temperature range: -65°C to -20°C.
  • Controller: ASET multifunctional controller; PT100 feedback; MODBUS RTU (RS-485) communication.
  • Cooling capacity examples: at -20°C: 0.85–7.2 kW; at -40°C: 0.7–6 kW; at -55°C: 0.4–3 kW (varies by model).
  • Circulation: pump flow up to 75 L/min and ~1 BAR typical depending on model; storage capacity 15–45 L (model dependent).
  • Evaporator: copper tube; refrigerant: R-404A; construction: cold-rolled steel with paint (SUS304 optional).
  • Power & dimensions: model-dependent (AC220V 50Hz for some models; AC380V 50Hz typical; optional 220V/60Hz or 440–480V/60Hz three-phase).


Options & customization
  • Circulation pump upgrades: 35 L/min, 50 L/min, 110 L/min at 2.5 bar; high-pressure pumps up to 6 bar; SUS304 construction option.
  • Alternative power configurations and increased liquid storage available on request.


Applications
  • Low-temperature industrial testing, laboratory cooling, material conditioning and processes requiring contamination-free closed-loop cooling.
