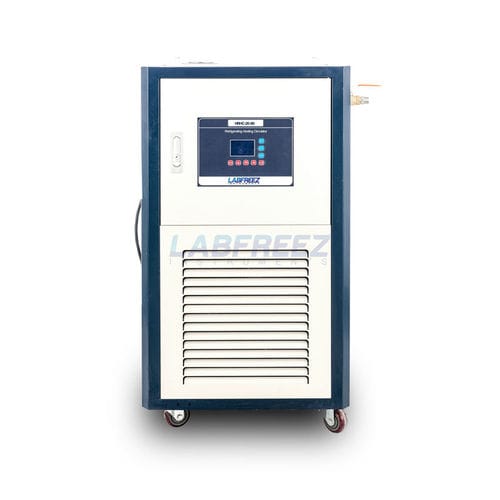

Refrigerated heating circulator HRHC series

for high temperatures

Overview
HRHC Series heating–cooling circulators are integrated high/low temperature units designed for precise temperature control of reactors and laboratory processes. The system uses a closed-loop heat transfer medium with an isolated expansion vessel to prevent vapor absorption and oil degradation, enabling continuous control across model-dependent ranges down to -80°C and up to +200°C.

Main features

• Integrated heating and cooling chamber with large exchange area for fast temperature ramp-up and ramp-down.
• Compressor-based refrigeration capable of operating from high setpoints to improve cooling rate and reduce cycle time.
• Closed circulation minimizes oil volatilization and moisture ingress, extending heat transfer fluid life.
• Multiple safety protections: self-diagnosis, freezer overload protection, high-pressure switch, overload relay and high-temperature protection.
• Adaptive PID control that continuously tunes parameters for stable response during processes.
• External and internal PT100 probe correction function.
• Uses CFC/HCFC-free refrigerants (R22 specified in model tables where indicated).
• 304 stainless steel seamless heating circulation piping (3.0 mm) and stainless steel braided hoses for connections.
• Solid-state relays for low noise and long service life; simultaneous display of set and actual temperatures with alarm.

Common specifications

• Temperature control accuracy: ±0.1°C; resolution 0.1°C; sensor: PT100.
• Heating power: 3000 W (typical for listed models).
• Cooling power: model dependent (see model blocks); refrigerant: R22.
• Circulating pump: enclosed non-leakage pump; 100 W; head ≈7 m; flow ≈18–20 L/min; rated pressure up to 4 MPa.
• Power supply: 380V ±10% 50Hz.
• Construction: anticorrosion sprayed body; overall dimensions and weights vary by model.

10 L models — key data

• Models: HRHC-10-20, HRHC-10-35, HRHC-10-40, HRHC-10-80.
• Reactor jacket suitability: 2–10 L; tank volume 6 L; heating volume 2 L; heating tank size Ø90×270 mm; oil tank 250×100×250 mm.
• Model-specific temperature ranges (°C): HRHC-10-20: -20 to +200; HRHC-10-35: -35 to +200; HRHC-10-40: -40 to +200; HRHC-10-80: -80 to +200.
• No-load minimum temperatures: approx. -22°C, -32°C, -40°C, -80°C respectively.
• Cooling power and performance vary by model; display resolution 0.1°C; accessories included: connector, manual, inlet/outlet gasket set, 2 stainless steel hoses.

20 L models — key data

• Models: HRHC-20-20, HRHC-20-30, HRHC-20-40.
• Reactor jacket suitability: 2–20 L; tank volume 6 L; heating volume 2 L; heating tank size Ø90×270 mm; oil tank 250×100×250 mm.
• Model-specific temperature ranges (°C): HRHC-20-20: -20 to +200; HRHC-20-30: -30 to +200; HRHC-20-40: -40 to +200.
• No-load minimum temperatures, cooling power and flow vary by model; typical overall size ~630×550×1060 mm; weight range 68–84 kg depending on model.
• Typical accessories: 1 connector, instruction manual, inlet & outlet gasket set, 2 stainless steel hoses.
