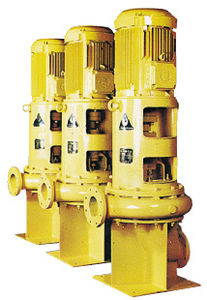

Characteristics
- Vertical.
- Single Suction.
- Single Stage.
- Submersible Motor.
Applications
- Water.
- Rain Water.
- Combined Sewage.
- Sea Water.
- Cooling Water.
- Sludge.
|
|
|
|
|
|
Pumps submarines F range MOVED Technology
Pumps of recirculation RZP range MOVED Technology
BEACH Of USE
Flow: up to 8000 m3/h
HMT: up to 100 mCE
APPLICATIONS
Installation of raising in dry or immersed pit
Raising, evacuation or exhaustion of waste water and charged
Water treatment: at the head post raising of station, bridge desanding pool, post office all water, posts extraction of muds in excess, station of recirculation of muds, recirculation of mixed liquor, raising of muds
digested, raising of the filtrations, raising of greases...
Basins of storm, rain water stations, hydrocarbon surface waters charged...
ADVANTAGES
Broad choice of wheels: vortex, channel, dilacératrice or with propeller
Double trimmings or with cartouches offering a great facility of maintenance
Possibility of cooling of the engines by oil bath for operation pumped out uninterrupted
Exit attaches standardized for adaptation on existing foot of base
Pump housing out of cast iron high-quality, high-output wheels
Tight entry of cable, assembled with a cable resistant to heavy loads
Room on terminals isolated against the pressure and the entries from water in winding
Ring hard material wear, it protects the pump housing and the wheel from the first aggressions
OPTIONS
Engine ATEX on request
Coating CERAM patented C0 MOVED Technology against abrasion and corrosion (ceramic coating without solvent, thickness 400µm with 3mm, adhesion 15N/mm ²)
Mechanical Ganiture in cartridge
Head of emulsion in Abrasit for the sand effluents charged
|
|
This series of pumps covers an extensive performance range and can be used in a variety of applications: from pumping sewage in treatment plants and municipal applications, handling industrial effluent, process water and raw water, to applications in aqua and agriculture.
The standard version of these pumps is made in cast iron and for more demanding applications the pumps can be supplied in industrial configuration. The pumps are also available in explosion proof versions. An extensive range of hydraulic sections, including the impeller and volute, are available to handle different types of media. The capacities range up to approx. 2,700 l/s. A variety of drive units, with motor ratings up to 780 kW, are also available.
|
|
ELECTRIC SUBMERSIBLE PUMP SM-VXC SERIES
Submersible pumps SM-VXC series in cast iron, particularly robust and reliable, intended for continuous heavy duty use in fixed installations, in building services and industry, recommended for sewage and waste water of all types with solid impurities
|
|
|
Low cost submersible water pump for use with sewage treatment systems, rainwater harvesters, flood recovery and emptying of swimming pools.
|
|
Features
* Non-clog two vane or single vane enclosed impeller
* Permissible solid size up to 85 mm
* Gland packed / Mechanical seal
* 50 HZ / 60 HZ availability
Applications
* Effluents
* Waste water
* Storm water
* Raw sewage
Range
* Delivery size up to 200 mm
* Capacity up to 750 m³ /hr
* Head up to 48 metres
* Temperature (-) 10 degree C to 90 degree C
|
|
The CP 10 and CP 20 submersible pumps are designed with the performance and durability which make them ideal for removing water from trenches, ditches, manholes, industrial sumps and excavations. Will pump down to within 7/8' (22 mm) from base.
* Single-stage centrifugal units driven by powerful vane motors
* Double seals protect bearings and motor from water and mud
* Integral oiler provides continuous lubrication
* Integral strainer, air inlet valve
* Bronze impeller
* Cast-iron housing
|
|
One of the main characteristics of FAGGIOLATI PUMPS is the high flexible production, that allows the realization of customised machines made according to customer’s requirements.
Nearby the standard production – our General Catalogue boasts more than 200 standard products – we realize special machines to meet the particular requirements of customers regarding hydraulic, metallurgy and power supply.
|
|
MultiCut Pumps with external adjustable cutting system
MultiCut submersible pumps are ideally suited for sewage and waste disposal in residential areas, such as housing estates, holiday parks or individual housing projects. These pumps are ideal for mounting in remote situations, such as motorway service stations and rural communities/farms etc.
For sewage and waste disposal in residential areas, such as housing estates, holiday parks or individual housing projects.
- Discharge branch DN 32
- Hmax = 17 m
- Qmax = 16 m3/h
|
|
Submersible Pumps for dirty water
Submersible pumps for dirty water manufactured in AISI 304 stainless steel. Head up to 20 metres, delivery up to 425 l/min (25,2 m3/h). Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power. Motor cooled by pumped liquid diffuser plate coated with Polyurethane for maximum resistance to abrasion compact and lightweight
Applications
- Draining of cellars, garages, basements.
- Draining of construction sites.
- Emptying of tanks and reservoirs.
- Lawn and garden irrigation.
- Fountains.
- Pumping of domestic wastewater (washing machines, showers, Sinks).
- Emptying of tanks in industrial and ecological Applications.
Specifications
- Liquid temperature up to 50°C.
- Open impeller.
- Minimum level of pumped liquid: 25 mm.
- Suspended solids handled up to 8 mm.
- Maximum immersion depth: 7m.
- 10 meters of HO7RN-F type neoprene power cord.
- Dry motor (class F insulation).
- IP 68 protection.
|
|
Features and Benefits
Silicon bronze, multi-vane semi-open impeller with pump-out vanes for mechanical seal protection.
Heavy duty cast iron, volute type casing for maximum efficiency.
Dual Mechanical Seals
Optional Seal Sensor Cord located in oil-filled chamber.
Stainless Steel Shaft and Fasteners
Applications
Designed for high head sewage applications where a gravity system is not practical.
Ideal for pressure sewage systems.
|
|
LB Series
Submersible Effluent, Vortex, Non-Clog & Cutter Pump
A very complete series of submersibile pump have been developed to meet your various requirements. In general, you are suggested to use LB series as drainage pump for liquid effluent pumping applications, LBV series as vortex pump for raw sewage applications and LBC series as cutter pump to chop the solids in wastewater.
|
|
Operating Limits:
-Max.Depth: 5m
-Max.fluid temperature: 40°C
-Max.passage of suspended solid body: φ30mm
-Continuous duty
Material:
-Pump body: Cast iron
-Impeller: Cast iron
-Motor shaft: Stainless Steel
-Radial cutter: AISI5140
-Double seal: Mechanical seal ceramic-graphite-NBR, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
Application:
·Drainage applications
·Sewage grinding
·Wastewater removal or transfer
·Dewatering
·Rcommended for usage in cellars, underground car parks, drains, cesspits etc.
|
|
Operating Limits:
-Max.Depth: 5m
-Max.fluid temperature: 40°C
-Max.passage of suspended solid body: ö35mm
-Min.drainage level from the bottom: 40mm
-Continuous duty
Material:
-Pump body: Cast iron
-Impeller: Cast iron
-Motor shaft: Stainless Steel
-Double seal: Mechanical seal ceramic-graphite-NBR, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
Application:
·Drainage and sewage applications
·Wastewater removal or transfer
·Dewatering
·Rcommended for usage in cellars, underground car parks, drains, cesspits etc.
|
|
This range of solids-handling pumps is extensive. From our very portable 2” vortex flow pump to the big 12” high performance model, we have a pump to cover just about every job. These versatile pumps are used to move liquids with semi-solids such as sewage, sludge, jobsite debris and industrial waste.
Hydraulically powered submersible self priming solids handling trash pumps.
Discharge sizes from 5 cm (2 inch) to 30 cm (12 inch)
Solids Handling up to 12.7 cm (5 inch)
Maximum heads up to 64 meters (210 feet)
Maximum flows up to 32,000 lpm (8,500 gpm)
Available in ductile iron, aluminum, and stainless steel construction.
|
|
|
|
|
|
Slurry removal is an essential part of day-to-day
operations in a wide range of industries, such as
mining, ore dressing, sand contracting, ash handling
and steel milling.
The applications in these industries make heavy
demands on the slurry pumps, particularly in terms of
the costs incurred when it comes to wear and tear,
repairs and maintenance.
In this series of pumps the wet end, indeed all wear
parts, are made of hardened high-chrome cast iron,
which provides complete wear protection. The highchrome
impeller, incorporates a swept-back design for
sustained high efficiency and clog-free performance in
the most severe applications.
The drive unit can be easily detached from the wet
end for fast access to wear parts. And there is no
need to replace the entire wet end because the split
casing design enables the volute lining to be easily
accessed and replaced.
Flygt is the only manufacturer that offers its customers
a total solution for slurry handling. The pumps can be
supplied with an agitator and/or a mixer for a cleaner
sump. Optional internal cooling allows pumping down
to low levels, avoiding sediment build-up – we call it
Clean Sump Technology.
Slurry pumps have capacities of up to 350 l/s and
pump heads up to 100 metres.
|
|
|
|
|
|
PUMPEX new sludge pumps, series SK – is a complete range, from 3" to 6”, of heavy duty, transportable, sludge pumps in cast iron.
PUMPEX sludge pumps SK 65-155 are available in high head and high flow versions with submersible motors from 1.3 to 25 kW.
The SK range is an important extention of Pumpex well known SP sludge pump series.
Product benefits Pumpex SK pumps
Trouble free and safe handling
PUMPEX sludge pump SK is a portable pump and features a sturdy stainless steel handle and a robust ductile iron stand.
Non overloading performance
All SK sludge pumps can operate over the entire performance curve without overloading the motor.
Easy service and maintenance
Modular design through the complete range with interchangeable spare parts makes maintenance and service easier.
Dry running capability
A closed cooling system enables the PUMPEX SK 83-155 to run dry, with no damage to the mechanical seals or the motor.
Solids handling capability
The SK sludge pumps are fitted with free flow vortex impeller and pump housing that provides excellent non clogging performance.
High reliability
PUMPEX SK 83-155 have cartridge seal unit with double mechanical seals for long life even under the most demanding operating conditions.
Environmentally safe
The oil housing on the SK 65-80 is filled with environmentally safe white oil and l friendly protection coatings are used on all the surfaces.
Explosion proof option
All SK sludge pumps are available in explosion proof versions EExd IIB T4 and ATEX.
High flexibility
The pump can operate in any position, vertical or horizontal.
|
|
|
|
|
|
The design process of the Warman SHW made extensive use of finite element stress analysis and state of the art solids modeling to ensure rugged, dependable solids handling capability at the lowest possible cost.
A heavy duty all chrome wet end coupled with a motor designed and built by Weir Minerals for the most demanding applications makes the Warman SHW the most dependable, long lasting submersible pump you can buy.
Features / Benefits
- Temperature sensor - Over-temperature sensors protect the motor by sounding an alarm or shutting down the unit if internal temperatures exceed safe operating limits.
- Moisture detector - A twin electrode system provides double protection by detecting moisture intrusion in either the motor housing or the mechanical seal chamber.
- Mechanical seals - The SHW incorporates Warman's proven balanced double-seal arrangement in which both sets of seal springs are enclosed in the oil reservoir. Silicon Carbide Seal faces are subject to submergence pressure only for greatly extended wear life.
- Heavy-duty water end - Standard high chrome iron construction coupled with heavy section thickness provides the ultimate in protection against abrasive wear in heavy slurries.
- Easy maintenance access - T-bolt construction allows rapid disassembly of the pump end for maintenance access. The heavy-duty impeller is not screwed on, but keyed to the shaft for easy removal and protection against movement during reverse rotation.
- Optional agitator - A robust agitator can be fitted to the suction eye allowing the pump to agitate high concentrations of solids.
|
|
|
The pumps are employed for public water applications, water control at construction sites and in mines, and fountains. Our range of submersible pumps handles bore hole sizes from 8” to 12”, capacities up to 580 m3/h and heads up to 450 m.
|
|
These hydraulically powered self priming submersible pumps are designed to stir solids into suspension and pump the mixture away. A built-in agitator works to loosen the material. The wear parts are hardened to handle abrasive materials. Typical uses are beach reclamation and silt dredging in lakes and marinas.
Discharge sizes of 7, 10, and 15 cm (3, 4, and 6 inch)
Output flows of 1740, 2760, and 4730 lpm (460, 730, and 1250 gpm)
Solids handling up to 3.8 cm (1.5 inch)
Maximum head up to 41 m (135 feet)
Hydraulic flow required 106 lpm (28 gpm) maximum
Maximum hydraulic pressure required 190 bar (2,800 psi)
|
|
These submersible centrifugal vortex type pumps are made, from top to toe in stainless steel and can handle a pH range of 2 – 14. In other words they are dedicated to handle corrosive media. Designed to work in demanding environments, pumping corrosive liquids and sludge’s as well as larger solids. The risk for clogging is very low due to the vortex technique. Typical applications include: Sewage and wastewater pumping, Industrial effluent handling, Chemical industry, Food processing, Textile industry and Tunnelling.
The performance range up to 57m in head and 60l/s in flow.
The pumps can be permanently installed on discharge with guide bars or as free standing for hose or pipe fitting
|
|
APPLICATIONS
* DECANTATION PIT, SEWAGE PIT AND SLURRY COLLECTION PIT PUMP OUT.
* PUMP OUT OF LAVATORY/FOUL WATER WITH POSSIBLE FLOATING
SOLIDS CONTENTS.
* DOMESTIC AND INDUSTRIAL LAVATORY/BLACK WATER HANDLING
DESIGN ENGINEERING
* DOUBLE CHAMBER ELECTRIC PUMP (MECHANICAL SEAL, MOTOR).
* OIL BATH MOTOR (BIODEGRADABLE AND DIELECTRIC) FOR COOLING AND BEARING LUBRICATION.
* SEALING RING - ENGINE FACE.
* OIL BATH MECHANICAL SEALS.
* DOUBLE MECHANICAL SEALS:
ENGINE FACE: OIL BATH
PUMP FACE: WATER BATH
* PERMISSIBLE DRAUGHT OF WATER: 5 m
* IP 68 PROTECTION CLASS
* CLASS “F” INSULATION
* MAX. PUMPED LIQUID TEMPERATURE:
25°C with PARTIALLY submerged pump.
50°C with TOTALLY submerged pump.
|
|
