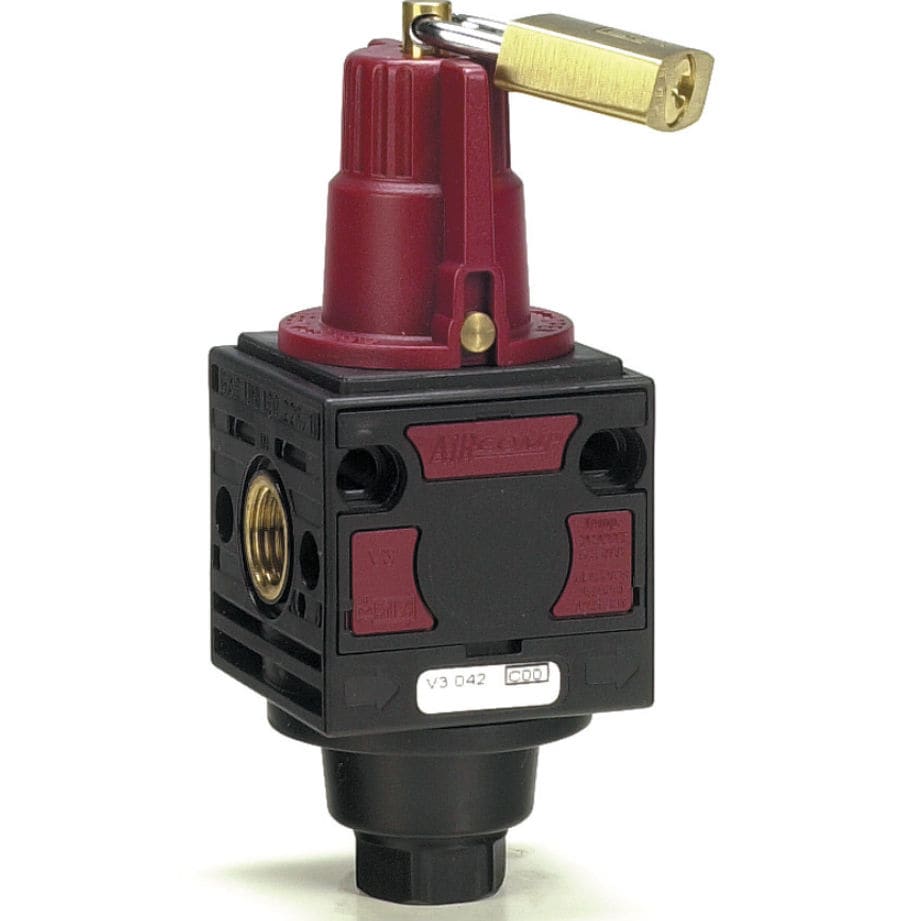

3 way shut-off valve
max. 16 bar, 1570 Nl/min
Aircomp by Stampotecnica
Used to shut off the air supply while relieving the downstream circuit.
*The block device is particularly useful during maintenance operations. It prevents the system from being accidentally or wrongly pressurized.
*It can be wall mounted using the relative holes.
*Discharge connection: G 1/8”.
*Maximum inlet pressure: 16,0 Bar (1,60 MPa).
*Max. ambient temperature (at 10 bar) 50°C (122°F).
*The device is equipped with 1 lock.
*Max. torque inserts G1/4” IN-OUT: 25 N·m.
*Reference flow rate (P=10 Bar - Δp=1 Bar): 1570 Nl/min.
*Weight: 0,155Kg.
*Product complies with Directive 2002/95/CE (RoHS).
