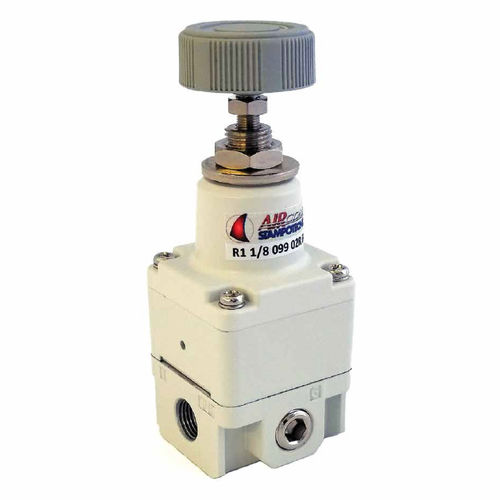

Compressed air pressure regulator 099 seriesdiaphragmsingle-stageprecision
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- diaphragm
- Number of stages
- single-stage
- Applications
- precision
- Other characteristics
- high-precision
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)
Description
Precision regulator size 1
Precision Regulator Line 099 is distinguished by high precision and stability of regulated pressure thanks to its multi-diaphragm construction concept.
The air escape feature along with a particularly sensitive relieving exhaust allow optimal performance even with low pressures.
It has been designed for accurate balance pressure setting or for working as tension controller, besides all the other applications where high precision is required.
* Fluid: compressed air
* FA in air escape version
* Connections IN - OUT G 1/8”
* Working pressure: 0 - 10 bar
* Pressure range: 0-2 bar; 0-4 bar 0-8 bar
* Sensitivity: 0,2% F.S.
* Repeatability: 0,5% F.S.
* Flow rate: see diagram
* Temperature: -5% / +60°C
* Regulator supplied complete with bracket and nr. 1 plug
* Weight: 0,150 kg.
