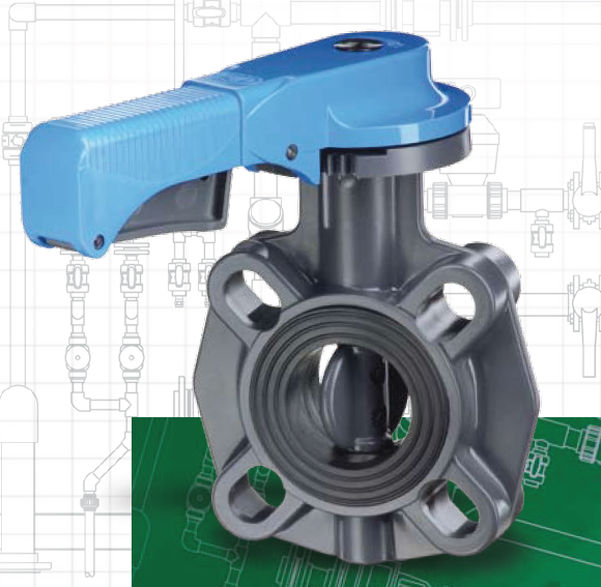

Lever operated butterfly valve
DN 40 - 200, max. 16 bar | FE-PVC series
FIP - Formatura Iniezione Polimeri
The FE is a Butterfly Valve, specifically designed for water applications. Full flanged body with oval holes to fit with flanges in various standards. Lug version available, with AISI 316 inserts. Ergonomic hand lever with locking device and flow throttling. Easy actuation, even after installation in the pipeline.
Features
*
Size Range from ND 40 to ND 200 (1 1/2" to 8")
*
Pressure rate up to 16 bar (232 psi) (see dimensional table) at 20°C (68°F)
*
Body material: PVC, not in contact with the line fluid
*
PVC disc
*
Primary liner interchangeable in EPDM, FPM, NBR
*
Drilling for actuation or Gear box: ISO 5211 F05-F07-F10
