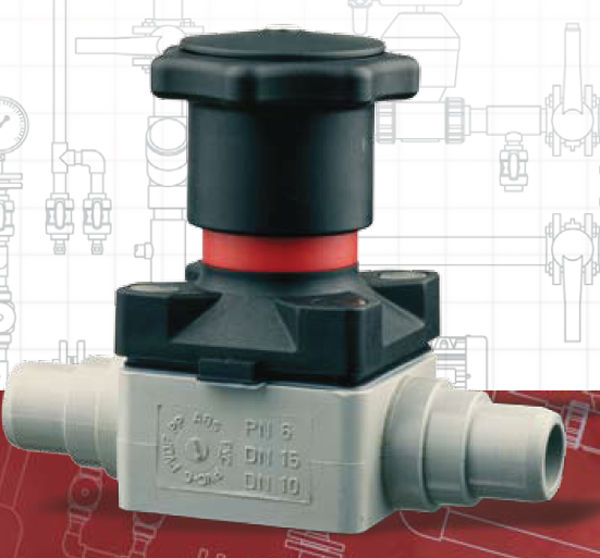

Manual handwheel diaphragm valve
DN 12 - 15, max. 6 bar | CM-PVC-C series FIP - Formatura Iniezione Polimeri

The CM is a manually operated diaphragm valve, with small overall dimensions that enable easy installation even where space is a premium. The spindle, not in contact with the fluid, is in metal.


Features

*
Size Range: ND 12 and ND 15 (3/8” and 1/2”)
*
Pressure rate up to 6 bar (87 psi) at 20°C (68°F): see dimensional table.
*
Body in C-PVC
*
Diaphragms in EPDM, FPM or PTFE
*
Position indicator as standard
*
Adjustable Travel Stop as standard
*
Maintenance without disassembling from the plant
*
Sealed Hand-wheel
