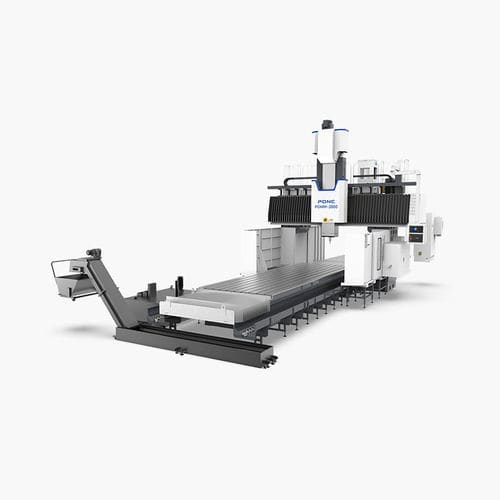

3軸フライス盤 PGMH series

縦型ブリッジBT 50

4,200 mm, 6,200 mm, 8,500 mm
(165.35 in, 244.09 in, 334.65 in)

3,700 mm
(145.67 in)

1,000 mm
(39.37 in)

6,000 rpm
(37,699 rad.min-1)

17 kW, 25.5 kW
(23.11 hp, 34.67 hp)

15 m/min

15 m/min

12 m/min

15 t, 22 t, 30 t
(17 us ton, 24 us ton, 33 us ton)

18 kg
(39.7 lb)

0.015 mm, 0.025 mm, 0.035 mm, 0.045 mm
(0.00059 in, 0.00098 in, 0.00138 in, 0.00177 in)

0.01 mm, 0.015 mm, 0.025 mm, 0.035 mm
(0.00039 in, 0.00059 in, 0.00098 in, 0.00138 in)

45 t, 51 t, 57 t
(49.6 us ton, 56.22 us ton, 62.83 us ton)

12,000 mm, 16,000 mm, 20,000 mm
(472.4 in, 629.9 in, 787.4 in)

6,800 mm
(267.7 in)

5,300 mm
(208.7 in)
