空気用ホース TPR

圧縮空気用熱可塑性樹脂製溶融亜鉛メッキ鋼製

Rotating quick coupling fittings
Quick coupling fittings, composed of a jack with hose end connector with male threading, guarantee quick and reliable connection. It is secured by a ball ring with a thrust spring, while a nitrile rubber seal guarantees a perfect vacuum seal. Their design allows free rotation at low speed and quick coupling or uncoupling by means of the knurled nut. As they are not self-retaining, they ensure a full suction passage, optimising the flow rate of the vacuum pumps. Made entirely of brass, they are available in different sizes to suit various applications.

• Product codes: RR3/8, RR1/2, RR3/4, RR1, RR11/4, RR11/2, RRF3/8, RRF1/2, RRF3/4, RRF1, RRF11/2, RRFF3/8, RRFF1/2, RRFF3/4, RRFF1, RRFF11/2

Fittings, nylon seals and hoses
The fittings described are suitable for connecting vacuum cup holders to their manifolds and whenever a connection to vacuum sources via smooth flexible hoses with internal diameters of 4, 6 and 9 mm is required (maximum allowed for a vacuum hose with no internal reinforcement). These are semi-rapid fittings. The hose is fixed by manually screwing the reeded bush with no need for keys. Threaded connections are male or female according to requirements. The range includes L and T-type fittings and caps with O-rings. The fittings are supplied complete with nylon seals.

• Product codes: RMM5, RM1/8, RM1/4, RM3/8, RF1/8, RF1/4, RF3/8, GNM5, GN1/8, GN1/4, GN3/8, GN1/2, RLM5, RL1/8, RL1/4, RL3/8, RTM5, RT1/8, RT1/4, RT3/8, TPL2, TPL4, TPL6, TPL8, TPL9

Compressed air and vacuum flexible hoses and relative fittings

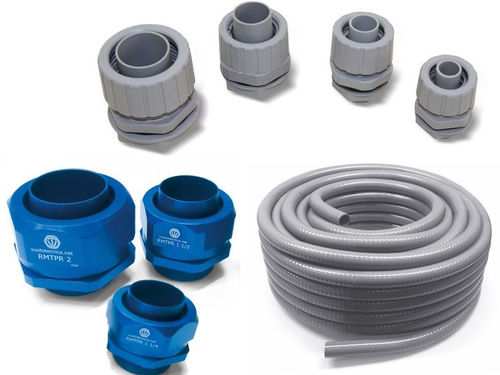

TPR flexible hoses specially designed for vacuum are composed of a single piece with plastic insulation and self-extinguishing materials, including the hose reinforcement core. They offer excellent flexibility, minimal bending radius and are lightweight with high resistance to crushing. Their smooth inside reduces pressure losses. They have high resistance to abrasion, weather agents and most chemicals. A new line of RMTPR fittings for TPR hoses is available. RTPR fittings from 3/8” to 1” are made of self-extinguishing PVC. RMTPR in anodised aluminium. Fittings are sturdy and provide a vacuum seal; they eliminate hose clamps and allow faster, safer connections. Hoses can be used in mobile laying/cable chains if bending radius specifications are respected.

• Product codes: TPR3/8, TPR1/2, TPR3/4, TPR1, TPR11/4, TPR11/2, TPR2, TPR3, RTPR3/8, RTPR1/2, RTPR3/4, RTPR1, RMTPR11/4, RMTPR11/2, RMTPR2, RMTPR3

Hose ends
Traditional barbed nickel-plated and brass hose end fittings. Suited for connecting smooth or reinforced flexible hoses with an internal diameter up to 76 mm.

• Product codes: RS1/4, RS3/8, RS1/2, RS3/4, RS1, RS11/4, RS11/2, RS2, RS3

Adapters and caps
Standard accessories offering different assembly options. Galvanised steel or brass adapters screwed onto standard vacuum cup support connections can change threads from gas to metric or vice-versa, convert male to female or vice-versa, and increase or decrease threaded diameters.

• Product codes: 0008130, 0008131, 0008230, 0008254, 0008255, 0008258, 0008129, 0008296, 0008297, 000854, 0008251, 0008252, 0015291, 001144, 001106, 001833, 0015273, 0008215, 0008216, 0008217, 0008218, 0008219, 0008220, 0008221, 0008222, 0008223, 0008224, 0008225, 0008226, 0008227, 0008228

Gas - NPT adapters
Adapters to allow using NPT threaded fittings on vacuum components with gas threading (vacuum cup supports, valves, solenoid valves, filters, etc.).

• Product codes: 0008259, 0008260, 0008261, 0008262, 0008263, 0008264, 0008265, 0008266, 0008267, 0008268, 0008269, 0008270, 0008271, 0008272, 0008273, 0008274, 0008275, 0008276

Caractéristiques / spécifications techniques

• Matériaux mentionnés: laiton (brass) pour accouplements rapides rotatifs; nickel-plated et laiton pour hose ends; PVC auto-extinguible et aluminium anodisé pour certains raccords RMTPR.
• Tailles et compatibilités: filetage mâle/femelle selon référence; diamètres intérieurs de tuyau cités: 4 mm, 6 mm, 9 mm (pour raccords sans renfort); tuyaux jusqu'à Ø intérieur 76 mm pour hose ends; raccords RTPR de 3/8" à 1".
• Fonctionnalités: joint en nitrile pour étanchéité sous vide; rotation libre à basse vitesse pour accouplements rotatifs; fixation de tuyau par bague cannelée vissée sans outils pour certains raccords; élimination de colliers grâce aux raccords spécifiques pour TPR.
• Résistances: haute résistance à l'écrasement, à l'abrasion, aux agents atmosphériques et à la plupart des produits chimiques (pour tuyaux TPR).
• Compatibilité d'usage: certains tuyaux adaptés à pose mobile / chaines porte-câbles sous réserve du rayon de courbure indiqué.
