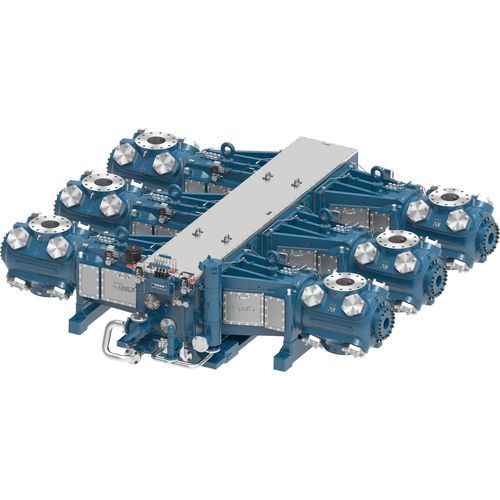

Reciprocating compressor KBZ

for process gasnatural gasmotorless

Overview
The KBU and KBZ are large separable, medium-speed reciprocating compressors designed for applications requiring high horsepower drivers and substantial compression capacity. These frames handle total rod loads up to 150,000 lbs and are available in multi-throw configurations to match site requirements.

Applications
These compressors are commonly used in pipeline transmission, midstream gas processing, gas storage and other industrial applications where variable suction conditions and high capacity control are required.

Performance — summary by throw
2 Throw
KBU | KBZ
Rated Power: 2,600 | 2,600
Stroke (in): 5.75 | 6.75
Max RPM: 1,200 | 1,000
Piston Speed: 1,150 | 1,125
Rod Diameter (in): 2.875 | 2.875
Total Rod Load (lbs): 150,000 | 150,000
Average Weight (lbs): 24,000 | 24,000
Max Length (in): 86 | 86
Nominal Width (in): 192 | 192
Crankshaft Centerline (in): 24 | 24

4 Throw
KBU | KBZ
Rated Power: 5,200 | 5,200
Stroke (in): 5.75 | 6.75
Max RPM: 1,200 | 1,000
Piston Speed: 1,150 | 1,125
Rod Diameter (in): 2.875 | 2.875
Total Rod Load (lbs): 150,000 | 150,000
Average Weight (lbs): 45,000 | 45,000
Max Length (in): 135 | 135
Nominal Width (in): 192 | 192
Crankshaft Centerline (in): 24 | 24

6 Throw
KBU | KBZ
Rated Power: 7,800 | 7,800
Stroke (in): 5.75 | 6.75
Max RPM: 1,200 | 1,000
Piston Speed: 1,150 | 1,125
Rod Diameter (in): 2.875 | 2.875
Total Rod Load (lbs): 150,000 | 150,000
Average Weight (lbs): 68,000 | 68,000
Max Length (in): 183 | 183
Nominal Width (in): 192 | 192
Crankshaft Centerline (in): 24 | 24

Product features

• High-efficiency oil filters: Canister-style filters rated 1-micron nominal / 12-micron absolute.
• Versatile unloading devices: Manual head-end variable volume clearance pockets (VVCP) available on most cylinders; limited pneumatic suction valve unloaders available.
• High-strength bolting: Grade 8 bolting on loaded joints and fatigue-resistant bolts on valve caps for secure fastening.

Materials

• Gray iron crankcase: forged steel crankshaft, gray iron crosshead guide, bronze thrust bearing, tri-metal main bearings.
• Ductile iron crosshead: alloy steel crosshead pin.
• Forged steel connecting rod: bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 stress bolts.

Innovative cylinders
Ariel cylinders are designed to operate across wide pressure ranges using valves that balance reliability and performance. Cylinder options cover the horsepower and rod-load capability of each frame and can be combined in numerous configurations to deliver the required gas volume and pressure. Ariel 7 performance software is used to model and design compressor configurations for specific applications.

Technical specifications

• Series / model: KBU / KBZ.
• Stroke: KBU 5.75 in (146 mm); KBZ 6.75 in (171 mm).
• Max RPM: KBU 1,200; KBZ 1,000.
• Piston rod diameter: 2.875 in (73 mm).
• Total rod load capacity: 150,000 lbs; tension: 75,000 lbs; compression: 80,000 lbs.
• Rated power by throw: 2-throw 2,600; 4-throw 5,200; 6-throw 7,800 (values per model where specified).
• Approximate weights by configuration: 24,000 lbs (2-throw); 45,000 lbs (4-throw); 68,000 lbs (6-throw).
• Maximum length (in): 86 (2-throw); 135 (4-throw); 183 (6-throw). Nominal width (in): 192. Crankshaft centerline (in): 24.
