Overview

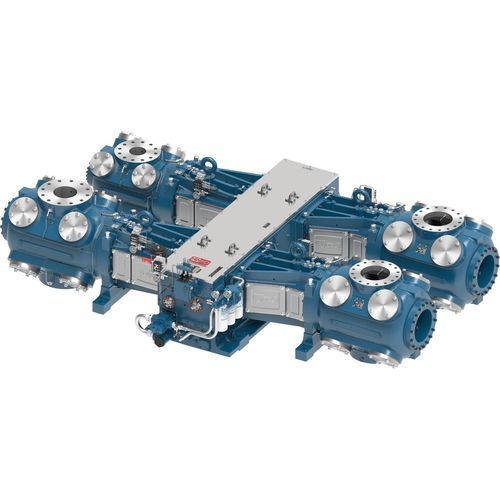

The Ariel KBK and KBT are heavy-duty reciprocating compressors designed for continuous operation in gas and oil field applications. Built with reinforced components and multiple cylinder options, these frames accommodate standard and specialized process requirements while delivering up to 5,520 BHP in multi-throw arrangements.

Product Features

• High-strength bolting: Grade 8 bolting on all loaded joints and fatigue-resistant bolts on valve caps for secure joint integrity.
• Rigid connecting rods: Forged-steel rods with four-bolt, heavy-duty I-section design for increased durability.
• Rugged crossheads: One-piece Ariel crossheads with hardened, ground steel pins and direct full-pressure lubrication at top and bottom to minimize wear.
• Versatile cylinders: Cylinder and valve designs usable across wide pressure ranges; cylinders can be combined in many configurations to deliver required volume and pressure.
• Ariel 7 performance software: Engineering tool to model and configure compressor packages, with legacy and current cylinder designs available for replication or new builds.

Materials

• Gray iron crankcase: Forged-steel crankshaft, gray-iron crosshead guide, bronze thrust bearing, tri-metal main bearings.
• Ductile iron crosshead: Alloy-steel crosshead pin.
• Forged-steel connecting rod: Bronze pin bushing, tri-metal rod bearing, grade 8 stress bolts.

2 Throw (Key parameters)
Parameter | KBK | KBT
Rated Power | 1,840 BHP | 1,840 BHP
Stroke (in) | 6 | 5
Max RPM | 1,200 | 1,500
Piston Speed | 1,200 | 1,250
Rod Diameter (in) | 2.0 | 2.0
Total Rod Load (lbs) | 92,000 | 92,000
Tension (lbs) | 46,000 | 46,000
Compression (lbs) | 50,000 | 50,000
Average Weight (lbs) | 11,500 | 11,500
Max Length (in) | 58 | 58
Nominal Width (in) | 169 | 169
Crankshaft Centerline (in) | 17 | 17

4 Throw (Key parameters)
Parameter | KBK | KBT
Rated Power | 3,680 BHP | 3,680 BHP
Stroke (in) | 6 | 5
Max RPM | 1,200 | 1,500
Piston Speed | 1,200 | 1,250
Rod Diameter (in) | 2.0 | 2.0
Total Rod Load (lbs) | 92,000 | 92,000
Tension (lbs) | 46,000 | 46,000
Compression (lbs) | 50,000 | 50,000
Average Weight (lbs) | 22,500 | 22,500
Max Length (in) | 101 | 101
Nominal Width (in) | 169 | 169
Crankshaft Centerline (in) | 17 | 17

6 Throw (Key parameters)
Parameter | KBK | KBT
Rated Power | 5,520 BHP | 5,520 BHP
Stroke (in) | 6 | 5
Max RPM | 1,200 | 1,500
Piston Speed | 1,200 | 1,250
Rod Diameter (in) | 2.0 | 2.0
Total Rod Load (lbs) | 92,000 | 92,000
Tension (lbs) | 46,000 | 46,000
Compression (lbs) | 50,000 | 50,000
Average Weight (lbs) | 35,500 | 35,500
Max Length (in) | 147 | 147
Nominal Width (in) | 169 | 169
Crankshaft Centerline (in) | 17 | 17

Additional Notes
Ariel cylinders are modular and can be combined in hundreds of configurations to match required flow and discharge pressure. Use Ariel 7 software for detailed modeling and selection when specifying KBK/KBT packages for gas and oil field operations.
