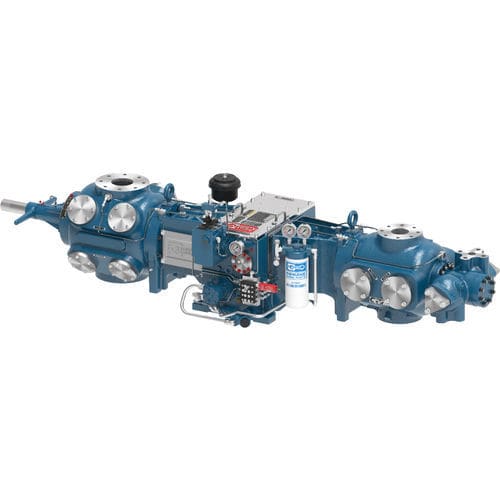

Gas compressor unit JGP

pistonmulti-stage

Overview
The Ariel JGM and JGP are compact reciprocating compressors designed for gas gathering, gas lift and CNG applications. They couple with a wide range of high-speed engines and handle up to 170 BHP. Available in 1-throw and 2-throw frame configurations, these compressors support up to four stages of compression via an extensive cylinder library.

Applications

• Wellhead compression and field gas gathering
• Gas lift systems and upstream gas handling
• Small- to medium-capacity CNG compression fleets

Product Features

• Rugged crossheads: One-piece crossheads with hardened, ground steel pins and full-pressure lubrication at top and bottom to minimize wear.
• Versatile unloading devices: Manual head-end variable volume clearance pockets (VVCP) on most cylinders; pneumatic suction valve unloaders available for selected applications.
• High-efficiency oil filters: Non-bypass spin-on oil filters rated 5-micron nominal and 17-micron absolute.
• Innovative cylinder designs: Cylinders usable across wide pressure ranges and combinable in multiple configurations; Ariel 7 performance software used for compressor modeling and configuration.

Materials

• Gray iron crankcase: Forged steel crankshaft, gray iron crosshead guide, tri-metal main bearing.
• Gray iron crosshead: Alloy steel crosshead pin.
• Ductile connecting rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 tension bolts.

Technical Data — 1 Throw
JGM | JGP
Rated Power: 85 | 85
Stroke (in): 3.5 | 3.0
Max RPM: 1,500 | 1,800
Piston Speed: 875 | 900
Rod Diameter (in): 1.125 | 1.125
Total Rod Load (lbs): 12,000 | 12,000
Tension (lbs): 6,000 | 6,000
Compression (lbs): 7,000 | 7,000
Average Weight (lbs): 1,400 | 1,400
Max Length (in): 37 | 37
Nominal Width (in): 62 | 62
Crankshaft Centerline (in): 9.25 | 9.25

Technical Data — 2 Throw
JGM | JGP
Rated Power: 170 | 170
Stroke (in): 3.5 | 3.0
Max RPM: 1,500 | 1,800
Piston Speed: 875 | 900
Rod Diameter (in): 1.125 | 1.125
Total Rod Load (lbs): 12,000 | 12,000
Tension (lbs): 6,000 | 6,000
Compression (lbs): 7,000 | 7,000
Average Weight (lbs): 2,200 | 2,200
Max Length (in): 34 | 34
Nominal Width (in): 83 | 83
Crankshaft Centerline (in): 9.25 | 9.25

Additional Notes
Compact small-frame compressor frames designed to couple with a broad range of high-speed engines. Up to four stages of compression are available via the cylinder library. A product spec sheet is available for detailed configuration and ordering information.

Specifications

• Maximum rated power: up to 170 BHP (dependent on frame and configuration)
• Available in 1-throw and 2-throw frame configurations
• Stroke options: 3.5 in (JGM) and 3.0 in (JGP)
• Maximum speeds: up to 1,800 RPM (depending on throw configuration)
• Piston speeds: 875–900 (manufacturer table)
• Rod diameter: 1.125 in; total rod load rated at 12,000 lbs
• Average weights: 1,400 lbs (1-throw) and 2,200 lbs (2-throw) depending on configuration
• Crankshaft centerline: 9.25 in
• Oil filtration: spin-on oil filters rated 5-micron nominal, 17-micron absolute
