Reciprocating compressor KBE

natural gaselectricstationary

Overview

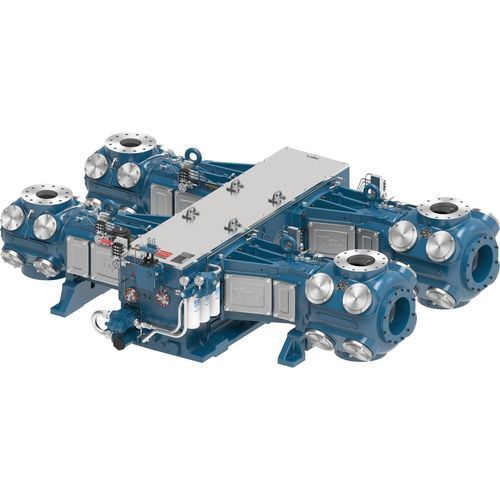

The Ariel KBE is a mid-line separable reciprocating compressor engineered, manufactured and supported to meet the requirements of natural gas gathering and compression leasing markets. It is offered with multiple cylinder configurations on two- or four-throw frame designs and combines the increased rod load and stiffness of KB-style designs with the cost advantages of E-style cylinders. Strength and versatility make the KBE well-suited for contract compression fleets.

Product features

• Heavy-duty crankshafts: Forged-steel, precision-machined crankshaft with integral counterweights, manufactured specifically by Ariel.
• Full-pressure lubrication: Frame-driven lube oil pump supplies cooled oil through a full-flow filter to all frame moving components; a divider-block system meters oil to cylinder bores and rod packings.
• Rugged crankcase: Heavily-ribbed gray-iron cast base with Ariel's removable aluminum top cover for long service life and ease of maintenance access.
• Innovative cylinders: Versatile cylinders designed for wide pressure ranges using valves that balance reliability and performance; cylinders can be combined in hundreds of configurations and are modeled with Ariel 7 Performance Software.

Materials

• Gray iron crankcase: Forged-steel crankshaft, gray iron crosshead guide, bronze thrust bearing, tri-metal main bearing.
• Ductile iron crosshead: Alloy-steel crosshead pin.
• Forged-steel connecting rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 fasteners.

2-throw — key data
KBE
Rated power: 1,300
Stroke (in): 5 (127 mm)
Max RPM: 1,500
Piston speed: 1,167
Rod diameter (in): 2.0 (51 mm)
Total rod load (lbs): 74,000
Tension (lbs): 37,000
Compression (lbs): 40,000
Average weight (lbs): 7,400
Max length (in): 58 (1,473 mm)
Nominal width (in): 169 (4,293 mm)
Crankshaft centerline (in): 17 (432 mm)

4-throw — key data
KBE
Rated power: 2,600
Stroke (in): 5 (127 mm)
Max RPM: 1,500
Piston speed: 1,167
Rod diameter (in): 2.0 (51 mm)
Total rod load (lbs): 74,000
Tension (lbs): 37,000
Compression (lbs): 40,000
Average weight (lbs): 17,000
Max length (in): 101 (2,565 mm)
Nominal width (in): 169 (4,293 mm)
Crankshaft centerline (in): 17 (432 mm)

Additional notes
Target applications: natural gas gathering and compression leasing markets; available in multiple cylinder configurations on two- or four-throw frames.

Technical specifications

• Model: KBE
• Type: Separable reciprocating compressor, mid-line
• Frame configurations: 2-throw and 4-throw
• Rated power (2-throw): 1,300
• Rated power (4-throw): 2,600
• Stroke: 5 in (127 mm)
• Max RPM: 1,500
• Piston speed: 1,167
• Rod diameter: 2.0 in (51 mm)
• Total rod load: 74,000 lbs (329 kN)
• Tension: 37,000 lbs (165 kN)
• Compression: 40,000 lbs (178 kN)
• Average weight (2-throw): 7,400 lbs (3,357 kg)
• Average weight (4-throw): 17,000 lbs (7,711 kg)
• Max length: 58 in (2-throw) / 101 in (4-throw)
• Nominal width: 169 in (4,293 mm)
• Crankshaft centerline: 17 in (432 mm)
• Crankshaft: Forged steel, precision-machined with integral counterweights
• Lubrication: Frame-driven lube oil pump, full-flow oil filter, divider-block oil supply to cylinders
• Crankcase: Gray iron cast base with removable aluminum top cover
