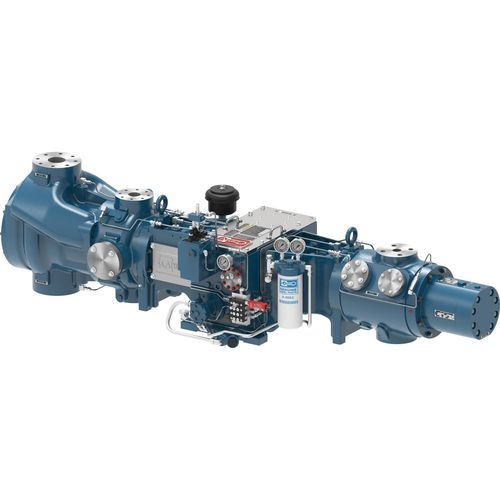

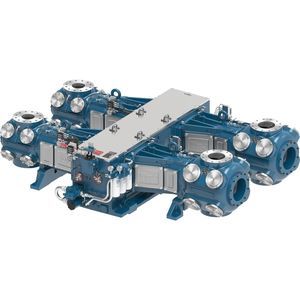

Gas compressor unit JGN

pistonhigh-pressuremulti-stage

Overview
Separable reciprocating compressors designed to couple with high-speed engines for field-gas applications. JGN and JGQ are offered with high-pressure cylinder options and are suited to gas-lift and CNG vehicle-fueling duties.

Applications & frames
Customers may deploy JGN and JGQ in single-throw or double-throw configurations for three-stage arrangements or small-horsepower rental fleets. The two frames provide nominal frame horsepower in the 250–280 BHP range and are engineered to operate under demanding field-gas conditions. Valve and unloader options enable adaptability as site conditions change.

Technical data — 1 throw
JGN | JGQ
Rated Power: 126 | 140 hp (94 | 104 kW)
Stroke: 3.5 | 3.0 in (89 | 76 mm)
Max RPM: 1,500 | 1,800 rpm
Piston Speed: 875 | 900 ft/min (4.5 | 4.6 m/s)
Rod Diameter: 1.125 | 1.125 in (29 | 29 mm)
Total Rod Load: 18,000 | 20,000 lbs (80 | 89 kN)
Tension: 9,000 | 10,000 lbs (40 | 44 kN)
Compression: 10,000 | 11,000 lbs (44 | 49 kN)
Average Weight: 1,400 | 1,400 lbs (635 | 635 kg)
Max Length: 37 | 37 in (940 | 940 mm)
Nominal Width: 62 | 62 in (1,575 | 1,575 mm)
Crankshaft Centerline: 9.25 | 9.25 in (235 | 235 mm)

Technical data — 2 throw
JGN | JGQ
Rated Power: 252 | 280 hp (188 | 209 kW)
Stroke: 3.5 | 3.0 in (89 | 76 mm)
Max RPM: 1,500 | 1,800 rpm
Piston Speed: 875 | 900 ft/min (4.5 | 4.6 m/s)
Rod Diameter: 1.125 | 1.125 in (29 | 29 mm)
Total Rod Load: 18,000 | 20,000 lbs (80 | 89 kN)
Tension: 9,000 | 10,000 lbs (40 | 44 kN)
Compression: 10,000 | 11,000 lbs (44 | 49 kN)
Average Weight: 2,200 | 2,200 lbs (998 | 998 kg)
Max Length: 34 | 34 in (864 | 864 mm)
Nominal Width: 83 | 83 in (2,108 | 2,108 mm)
Crankshaft Centerline: 9.25 | 9.25 in (235 | 235 mm)

Product features

• Precision bearing shells: Main and connecting rod bearings are precision-machined with tri-metal composition for consistent load support.
• Versatile unloading devices: Manual head-end variable volume clearance pockets (VVCP) are available on most cylinders; pneumatic suction valve unloaders offered in select applications.
• Efficient valves: Plate-type valves designed for modern operating speeds, using non-metallic sealing elements as standard and selected to meet low-valve-velocity criteria.
• Innovative cylinders: Cylinders are designed for wide pressure-range operation and can be combined in multiple configurations to deliver required volume and pressure. Ariel 7 Performance Software is used for configuration modeling.

Materials

• Gray iron crankcase: Forged steel crankshaft, gray iron crosshead guide, tri-metal main bearing.
• Ductile iron crosshead: Alloy steel crosshead pin.
• Forged steel connecting rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 bolts.

Notes / Technical specifications

• Models: JGN and JGQ (available in 1-throw and 2-throw configurations).
• Primary applications: field-gas, gas-lift, CNG vehicle-fueling, small-horsepower rental fleets, three-stage configurations.
• Frame horsepower examples: nominally 250–280 BHP depending on configuration.
• Valves & unloaders: manual VVCP, head-end variable volume pockets, limited pneumatic suction-valve unloaders.
• Configuration modeling supported via Ariel 7 Performance Software.
