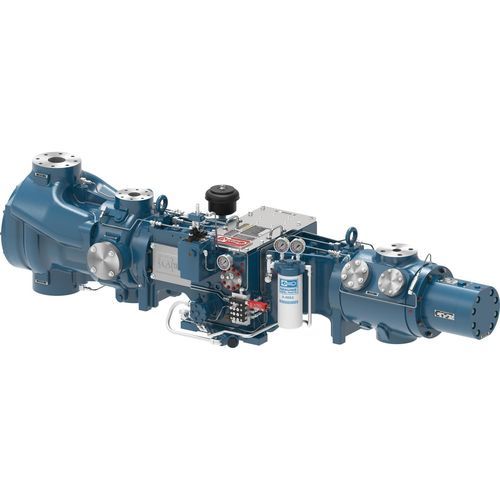

Gas compressor unit JGQ

pistonhigh-pressuresingle-stage

Overview
Ariel JGN and JGQ separable reciprocating compressors are engineered for field-gas and CNG vehicle-fueling applications. Designed to couple with high-speed engines, these frames accept high-pressure cylinders and configurable valve/unloader options to match varying well and fueling conditions.

Applications & fleet use
Suitable for gas-lift, small-line field-gas service and CNG vehicle-fueling stations. Operators and rental fleet managers commonly select JGN and JGQ for single- and multi-stage (including three-stage) compressor trains in the 250–280 BHP frame class.

Product features

• Precision bearing shells: Main and connecting rod bearings are precision-machined with tri-metal composition for consistent alignment and service life.
• Versatile unloading devices: Manual and head-end variable volume clearance pockets (VVCP) on most cylinders; pneumatic suction valve unloaders available for selected applications.
• Efficient valves: Plate-type valves designed for modern operating speeds with non-metallic sealing elements as standard; valve selections conform to established low valve-velocity criteria.
• Modular cylinders: Cylinder designs operate reliably across wide pressure ranges and can be combined in multiple configurations to deliver required volumes and pressures. Ariel 7 Performance Software is used for configuration modelling.

Materials

• Gray iron crankcase: Forged steel crankshaft, gray iron crosshead guide, tri-metal main bearings.
• Ductile iron crosshead: Alloy steel crosshead pin.
• Forged steel connecting rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 stress bolts.

Performance & Dimensions — 1 Throw (single throw)
JGN / JGQ
Rated Power: 126 / 140 HP (94 / 104 kW)
Stroke: 3.5 in / 89 mm — 3.0 in / 76 mm
Max RPM: 1,500 / 1,800 RPM
Piston Speed: 875 / 900 ft/min (~4.5 / 4.6 m/s)
Rod Diameter: 1.125 in (29 mm)
Total Rod Load: 18,000 / 20,000 lbs (≈80 / 89 kN)
Tension / Compression: 9,000 / 10,000 lbs — 10,000 / 11,000 lbs (≈40 / 44 kN — 44 / 49 kN)
Average Weight: 1,400 lbs (≈635 kg)
Max Length: 37 in (≈940 mm)
Nominal Width: 62 in (≈1,575 mm)
Crankshaft Centerline: 9.25 in (≈235 mm)

Performance & Dimensions — 2 Throw
JGN / JGQ
Rated Power: 252 / 280 HP (188 / 209 kW)
Stroke: 3.5 in / 89 mm — 3.0 in / 76 mm
Max RPM: 1,500 / 1,800 RPM
Piston Speed: 875 / 900 ft/min (~4.5 / 4.6 m/s)
Rod Diameter: 1.125 in (29 mm)
Total Rod Load: 18,000 / 20,000 lbs (≈80 / 89 kN)
Tension / Compression: 9,000 / 10,000 lbs — 10,000 / 11,000 lbs (≈40 / 44 kN — 44 / 49 kN)
Average Weight: 2,200 lbs (≈998 kg)
Max Length: 34 in (≈864 mm)
Nominal Width: 83 in (≈2,108 mm)
Crankshaft Centerline: 9.25 in (≈235 mm)

Additional notes
Configured for small-line field-gas and CNG fueling; supports multiple valve and unloader options to adapt to changes in gas composition and field conditions. Consult Ariel performance software and factory for specific cylinder and valve combinations.

Technical specifications

• Models: Ariel JGN and JGQ (available in 1-throw and 2-throw configurations)
• Typical frame horsepower: 250–280 BHP (frame examples for rental and rugged field operation)
• Options: High-pressure cylinders, manual VVCP, pneumatic suction unloaders, multiple valve materials and configurations
• Key dimensions and loads: see Performance & Dimensions blocks for rated power, stroke, RPM, piston speed, rod diameter, rod loads, tension/compression values, weights and envelope dimensions
