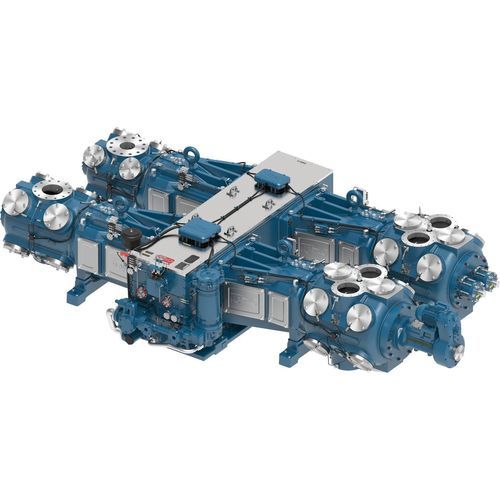

Reciprocating compressor KBC

reciprocating pistonfor process gasnatural gas

Overview
The KBC/KBD/KBF are Ariel large-frame, medium-speed reciprocating compressors designed for coupling with electric motors or natural-gas engines. Intended for high-horsepower, high-capacity compression projects, they cover natural gas gathering, processing, pipeline transport & storage, process and industrial gases, carbon capture and other industrial compression applications. The design concentrates high horsepower density in a compact footprint and reduces vibration while facilitating operation and maintenance improvements for owner/operators.

Product features

• Efficient valves: Plate-type valves optimized for modern speeds with non-metallic sealing elements as standard; valves selected to meet low-valve-velocity criteria.
• Heavy-duty crankshafts: Forged-steel, precision-machined crankshafts with integral counterweights manufactured by Ariel.
• Redesigned guide supports: Robust KB-style angled guides with through-bolting for increased strength and rigidity.
• Versatile cylinders: Cylinders usable across wide pressure ranges and combinable in multiple configurations; Ariel 7 performance software used for modeling and configuration.

Materials

• Gray iron crankcase: Forged-steel crankshaft, gray iron crosshead guide, bronze thrust bearing, tri-metal main bearing.
• Ductile iron crosshead: Alloy-steel crosshead pin.
• Forged-steel connecting rod: Bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 tension bolts.

Technical Data — 2 Throw
KBC | KBD | KBF
Rated Power (BHP): 2,400 | 2,400 | 2,400
Stroke (in): 7.0 | 6.0 | 5.0
Max RPM: 1,000 | 1,200 | 1,400
Piston Speed (FPM): 1,167 | 1,200 | 1,167
Rod Diameter (in): 2.5 | 2.5 | 2.5
Total Rod Load (lbs): 132,000 | 132,000 | 132,000
Tension (lbs): 66,000 | 66,000 | 66,000
Compression (lbs): 69,000 | 69,000 | 69,000
Average Weight (lbs): 16,300 | 16,300 | 16,300
Max Length (in): 64 | 64 | 64
Nominal Width (in): 185 | 185 | 185
Crankshaft Centerline (in): 21 | 21 | 21

Technical Data — 4 Throw
KBC | KBD | KBF
Rated Power (BHP): 4,800 | 4,800 | 4,800
Stroke (in): 7.0 | 6.0 | 5.0
Max RPM: 1,000 | 1,200 | 1,400
Piston Speed (FPM): 1,167 | 1,200 | 1,167
Rod Diameter (in): 2.5 | 2.5 | 2.5
Total Rod Load (lbs): 132,000 | 132,000 | 132,000
Tension (lbs): 66,000 | 66,000 | 66,000
Compression (lbs): 69,000 | 69,000 | 69,000
Average Weight (lbs): 33,600 | 33,600 | 33,600
Max Length (in): 115 | 115 | 115
Nominal Width (in): 185 | 185 | 185
Crankshaft Centerline (in): 21 | 21 | 21

Technical Data — 6 Throw
KBC | KBD | KBF
Rated Power (BHP): 7,200 | 7,200 | 7,200
Stroke (in): 7.0 | 6.0 | 5.0
Max RPM: 1,000 | 1,200 | 1,400
Piston Speed (FPM): 1,167 | 1,200 | 1,167
Rod Diameter (in): 2.5 | 2.5 | 2.5
Total Rod Load (lbs): 132,000 | 132,000 | 132,000
Tension (lbs): 66,000 | 66,000 | 66,000
Compression (lbs): 69,000 | 69,000 | 69,000
Average Weight (lbs): 50,050 | 50,050 | 50,050
Max Length (in): 158 | 158 | 158
Nominal Width (in): 185 | 185 | 185
Crankshaft Centerline (in): 21 | 21 | 21

Technical specifications

• Brand: Ariel
• Model designation: KBC / KBD / KBF (large-frame, medium-speed reciprocating compressors)
• Horsepower capability (frame dependent): 2,400 BHP (2-throw), 4,800 BHP (4-throw), 7,200 BHP (6-throw)
• Typical applications: natural gas gathering, processing, pipeline transport & storage, process & industrial gases, carbon capture
• Valve type: Plate-type valves with non-metallic sealing elements
• Crankcase/Crosshead/Connecting rod materials: Gray iron crankcase, ductile iron crosshead, forged-steel connecting rod
• Crankshaft centerline: 21 in
• Nominal width: 185 in
