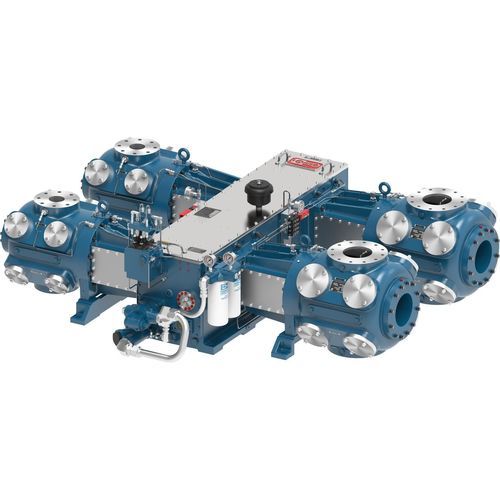

The Ariel JGR is a medium-sized separable reciprocating compressor designed for field gas gathering on moderate-size wells. It integrates easily with electric motors and natural gas engines and is available in configurations up to 860 BHP. The JGR is commonly used for conventional gathering wells and as a primary compressor in distributed gathering systems.

Technical Data — 2 Throw
Model: JGR
Rated Power: 430 BHP
Stroke: 4.25 in
Max RPM: 1,200
Piston Speed: 850 (as presented)
Rod Diameter: 1.5 in
Total Rod Load: 32,000 lbs
Tension: 16,000 lbs
Compression: 20,000 lbs
Average Weight: 4,800 lbs
Max Length: 41 in
Nominal Width: 104 in
Crankshaft Centerline: 12 in

Technical Data — 4 Throw
Model: JGR
Rated Power: 860 BHP
Stroke: 4.25 in
Max RPM: 1,200
Piston Speed: 850 (as presented)
Rod Diameter: 1.5 in
Total Rod Load: 32,000 lbs
Tension: 16,000 lbs
Compression: 20,000 lbs
Average Weight: 9,600 lbs
Max Length: 78 in
Nominal Width: 104 in
Crankshaft Centerline: 12 in

Product Features
Full Pressure Lubrication
A frame-driven lube oil pump supplies cooled oil through a full-flow oil filter to all frame moving components. A divider-block system meters oil to cylinder bores and rod packings.

Heavy-Duty Crankshafts
Crankshafts are forged steel, precision-machined with integral counterweights manufactured by Ariel Corporation for the JGR frame.

High-Strength Bolting
Grade 8 bolting on loaded joints and fatigue-resistant bolts on valve caps provide secure fastening across the frame.

Innovative Cylinders
Ariel cylinders are versatile across wide pressure ranges using valves that balance reliability and performance. For each frame size, cylinder options fully utilize available horsepower and rod load. Cylinders can be combined in numerous configurations; Ariel 7 performance software is used for modeling and configuration design.

Materials

• Gray iron crankcase: forged steel crankshaft, gray iron crosshead guide, tri-metal main bearing
• Ductile iron crosshead: alloy steel crosshead pin

• Forged steel connecting rod: bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 stress bolts

Additional Images and Assembly Views
Disassembled small-frame and component assembly views illustrate frame, crosshead and connecting rod construction.

Technical Specifications

• Product: Ariel JGR (medium-sized separable reciprocating compressor)
• Applications: Field gas gathering on moderate-size wells; compatible with electric motors and natural gas engines
• Available configurations: Up to 860 BHP
• 2-throw — Rated Power: 430 BHP; Stroke: 4.25 in; Max RPM: 1,200; Piston Speed: 850; Rod Diameter: 1.5 in; Total Rod Load: 32,000 lbs; Tension: 16,000 lbs; Compression: 20,000 lbs; Average Weight: 4,800 lbs; Max Length: 41 in; Nominal Width: 104 in; Crankshaft Centerline: 12 in
• 4-throw — Rated Power: 860 BHP; Stroke: 4.25 in; Max RPM: 1,200; Piston Speed: 850; Rod Diameter: 1.5 in; Total Rod Load: 32,000 lbs; Tension: 16,000 lbs; Compression: 20,000 lbs; Average Weight: 9,600 lbs; Max Length: 78 in; Nominal Width: 104 in; Crankshaft Centerline: 12 in
