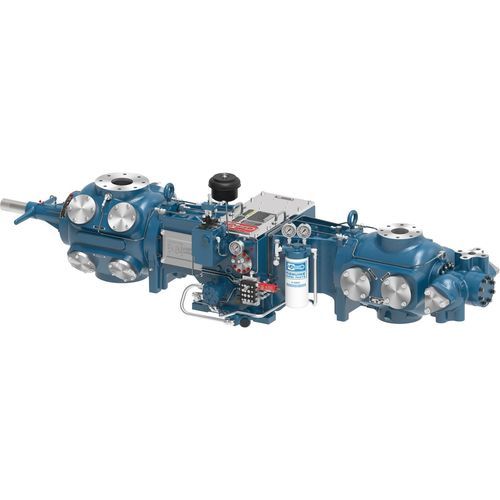

Gas compressor unit JGM

pistonmulti-stage

Overview
The Ariel JGM and JGP are small-frame reciprocating gas compressors suited for gas gathering, gas lift and CNG applications. They are designed to couple with a wide range of high-speed engines and accommodate up to 170 BHP. Using up to 4 stages of compression and a broad cylinder library, the JGM and JGP provide multiple configuration options within a compact footprint.

Applications

• Gas gathering
• Gas lift
• CNG filling and small-line compressor duties

Product Features

• Compatibility with a wide range of high-speed engines
• Support for up to 4 compression stages via an extensive cylinder library
• Versatile cylinder configurations to match required flow and discharge pressure
• Unloading options: manual head-end variable volume clearance pockets (VVCP) on most cylinders; limited availability of pneumatic suction valve unloaders
• High-efficiency, non-bypassing spin-on oil filters (5-micron nominal, 17-micron absolute)

Materials

• Gray iron crankcase: forged steel crankshaft, gray iron crosshead guide, tri-metal main bearing
• Gray iron crosshead: alloy steel crosshead pin
• Ductile connecting rod: bronze crosshead pin bushing, tri-metal connecting rod bearing, grade 8 stress bolts

1 Throw (table)
JGM vs JGP — Rated Power: 85 / 85; Stroke (in): 3.5 / 3.0; Max RPM: 1,500 / 1,800; Piston Speed (ft/min): 875 / 900; Rod Diameter (in): 1.125 / 1.125; Total Rod Load (lbs): 12,000 / 12,000; Tension (lbs): 6,000 / 6,000; Compression (lbs): 7,000 / 7,000; Average Weight (lbs): 1,400 / 1,400; Max Length (in): 37 / 37; Nominal Width (in): 62 / 62; Crankshaft Centerline (in): 9.25 / 9.25

2 Throw (table)
JGM vs JGP — Rated Power: 170 / 170; Stroke (in): 3.5 / 3.0; Max RPM: 1,500 / 1,800; Piston Speed (ft/min): 875 / 900; Rod Diameter (in): 1.125 / 1.125; Total Rod Load (lbs): 12,000 / 12,000; Tension (lbs): 6,000 / 6,000; Compression (lbs): 7,000 / 7,000; Average Weight (lbs): 2,200 / 2,200; Max Length (in): 34 / 34; Nominal Width (in): 83 / 83; Crankshaft Centerline (in): 9.25 / 9.25

Notes
Up to 4 stages of compression are supported via Ariel's cylinder offerings. Ariel 7 Performance Software is used to model and design compressor configurations to match specific applications, replicate historic designs or configure new builds.

Technical specifications

• Brand: Ariel
• Model / Series: JGM / JGP
• Maximum rated power: Up to 170 BHP
• Stages of compression: Up to 4 stages
• Typical applications: Gas gathering, gas lift, CNG
• Stroke options: 3.5 in (JGM) and 3.0 in (JGP)
• Max RPM: JGM 1,500 rpm; JGP 1,800 rpm
• Piston speed (ft/min): JGM 875; JGP 900
• Rod diameter: 1.125 in
• Total rod load limit: 12,000 lbs
• Tension: 6,000 lbs; Compression: 7,000 lbs
• Average weight (varies by configuration): 1,400–2,200 lbs
• Max length and nominal width differ by throw configuration (see tables above)
• Crankshaft centerline: 9.25 in
• Lubrication filter: non-bypassing spin-on oil filter, 5-micron nominal, 17-micron absolute
• Cylinders and valves: versatile cylinder designs combinable to meet required flow and pressure
