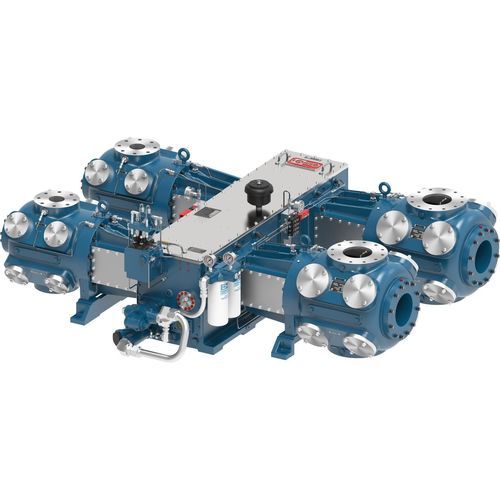

The Ariel JGJ is a separable, medium‑frame reciprocating compressor designed for gas gathering and fuel‑gas boosting on moderate‑capacity wells. It delivers compact, high‑speed performance with a short stroke and high rod load relative to its footprint.

Applications

• Fuel‑gas boosting
• Gas gathering at well sites
• Installations driven by electric motors or natural‑gas engines

Product Features

• Efficient valves: Plate‑type valves configured for modern operating speeds, standard with non‑metallic sealing elements and selected to minimize valve velocity.
• Precision bearing shells: Tri‑metal main and connecting‑rod bearings machined to tight tolerances for consistent service life.
• Rigid connecting rods: Forged‑steel rods with four bolts and heavy‑duty I‑section for high rod‑load capability.

Materials

• Gray iron crankcase: Forged‑steel crankshaft, gray‑iron crosshead guide, bronze thrust bearing, tri‑metal main bearing.
• Ductile iron crosshead: Alloy‑steel crosshead pin.
• Forged steel connecting rod: Bronze crosshead pin bushing, tri‑metal connecting‑rod bearing, grade‑8 stress bolts.

Cylinders and configuration
Ariel offers versatile cylinder designs that cover wide pressure ranges and can be combined in numerous arrangements to meet specific volume and pressure requirements. Ariel 7 Performance Software is used to model and select cylinder and compressor configurations for field applications.

Technical Data — Configuration 2
JGJ — Rated Power: 620
Stroke (in): 3.5
Max RPM: 1,800
Piston Speed: 1,050
Rod Diameter (in): 1.5
Total Rod Load (lbs): 42,000
Tension (lbs): 21,000
Compression (lbs): 23,000
Average Weight (lbs): 4,800
Max Length (in): 41
Nominal Width (in): 104
Crankshaft Centerline (in): 12

Technical Data — Configuration 4
JGJ — Rated Power: 1,240
Stroke (in): 3.5
Max RPM: 1,800
Piston Speed: 1,050
Rod Diameter (in): 1.5
Total Rod Load (lbs): 42,000
Tension (lbs): 21,000
Compression (lbs): 23,000
Average Weight (lbs): 9,600
Max Length (in): 78
Nominal Width (in): 104
Crankshaft Centerline (in): 12

Technical Data — Configuration 6
JGJ — Rated Power: 1,860
Stroke (in): 3.5
Max RPM: 1,800
Piston Speed: 1,050
Rod Diameter (in): 1.5
Total Rod Load (lbs): 42,000
Tension (lbs): 21,000
Compression (lbs): 23,000
Average Weight (lbs): 14,400
Max Length (in): 108
Nominal Width (in): 104
Crankshaft Centerline (in): 12

Technical specifications

• Model / Denomination: JGJ
• Configuration options: 2, 4, 6 throw configurations
• Rated Power (2 / 4 / 6): 620 / 1,240 / 1,860
• Stroke: 3.5 in
• Maximum RPM: 1,800 rpm
• Piston Speed: 1,050 (units as presented)
• Rod Diameter: 1.5 in
• Total Rod Load: 42,000 lbs
• Tension: 21,000 lbs
• Compression: 23,000 lbs
• Average Weight (2 / 4 / 6): 4,800 lbs / 9,600 lbs / 14,400 lbs
• Max Length (2 / 4 / 6): 41 in / 78 in / 108 in
• Nominal Width: 104 in
• Crankshaft Centerline: 12 in
• Materials: Gray iron crankcase, forged steel crankshaft, ductile iron crosshead, forged steel connecting rods, tri‑metal bearings, bronze thrust and crosshead bushings
