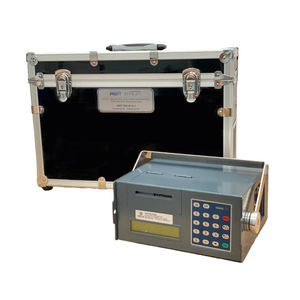

Ultrasonic transit-time flow meter AI.C-Sonicvolumefor waterfor hot water
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic transit-time
- Type
- volume
- Fluid
- for water, for wastewater, for hot water, rainwater
- Pipe diameter
- DN50 - 2", DN25 - 1", DN80 - 3", DN40 - 1"1/2, DN20 - 3/4", DN32 - 1"1/4, DN65 - 2"1/2, DN60 - 2"1/4
- Installation
- clamp-on, vertical, horizontal
- Material
- stainless steel, steel, PVC
- Communication
- 4-20 mA, RS485, Modbus, wireless
- Supply voltage
- 24VDC, 12VDC, 32VDC
- Protection level
- IP54
- Applications
- for low flow rates, industrial, for the pharmaceutical industry, for the food industry, for filling applications, for biotechnology, for pumping applications, for water treatment, for high flow rates, for tanks, for medical applications, laboratory, for marine applications, for the beverage industry, for dosing, for hydraulic applications, sanitary, irrigation, for test benches
- Other characteristics
- ultra-compact, digital, precision, with display, electronic, programmable, non-contact, maintenance-free, non-invasive, with indicator-totalizer
- Process temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
The AI.C-SONIC is the cutting-edge solution for measuring water flow in small pipes. Thanks to "transit time" ultrasonic technology, this instrument allows precise flow monitoring without cutting pipes or interrupting the process, ensuring quick and clean installation.
Strengths
Non-Invasive Installation (Clamp-On): The clamp-on design allows the instrument to be attached directly to the outside of the pipe in just a few minutes. No contact with the liquid, no pressure loss, and zero risk of contamination.
Extremely Small Dimensions: One of the most compact meters on the market, ideal for installation in tight spaces or on machinery where space is a critical factor.
Rotatable Color LCD Display: Featuring a crisp 1.44" screen that can be rotated in 4 directions, allowing for easy reading of data (instantaneous and total flow rate) regardless of pipe orientation.
Maximum Material Versatility: Compatible with a wide range of pipes, including carbon steel, stainless steel, PVC, copper, and Cu-Ni, covering diameters from DN20 to DN80.
Reliable Accuracy: Despite its compact size, it offers an accuracy of ±2% and excellent repeatability (0.2%), making it perfect for monitoring potable, demineralized, or seawater.
Main Technical Specifications
Measurement Range: From 0.03 to 5 m/s.
Signal Outputs: Total versatility with RS485 (Modbus), 4-20 mA, pulse output, and relay options.
Power Supply: 10-36V DC.
Grade Display Protection: IP54.
Fluid Temperature: From 0°C to +60°C.
Wiring: Supplied with 2 meters of cable for direct output.
Application Areas
Water Management: Monitoring of drinking water, desalination plants, and demineralization systems.
Building Automation: Control of water consumption in residential and industrial plants.
OEM and Machinery: Integration into small-scale cooling or dosing systems.
Strengths
Non-Invasive Installation (Clamp-On): The clamp-on design allows the instrument to be attached directly to the outside of the pipe in just a few minutes. No contact with the liquid, no pressure loss, and zero risk of contamination.
Extremely Small Dimensions: One of the most compact meters on the market, ideal for installation in tight spaces or on machinery where space is a critical factor.
Rotatable Color LCD Display: Featuring a crisp 1.44" screen that can be rotated in 4 directions, allowing for easy reading of data (instantaneous and total flow rate) regardless of pipe orientation.
Maximum Material Versatility: Compatible with a wide range of pipes, including carbon steel, stainless steel, PVC, copper, and Cu-Ni, covering diameters from DN20 to DN80.
Reliable Accuracy: Despite its compact size, it offers an accuracy of ±2% and excellent repeatability (0.2%), making it perfect for monitoring potable, demineralized, or seawater.
Main Technical Specifications
Measurement Range: From 0.03 to 5 m/s.
Signal Outputs: Total versatility with RS485 (Modbus), 4-20 mA, pulse output, and relay options.
Power Supply: 10-36V DC.
Grade Display Protection: IP54.
Fluid Temperature: From 0°C to +60°C.
Wiring: Supplied with 2 meters of cable for direct output.
Application Areas
Water Management: Monitoring of drinking water, desalination plants, and demineralization systems.
Building Automation: Control of water consumption in residential and industrial plants.
OEM and Machinery: Integration into small-scale cooling or dosing systems.
