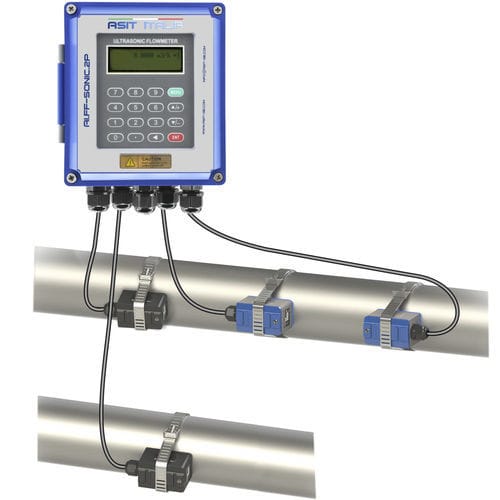

Ultrasonic transit-time flow meter AI.FFSonic.2Pultrasonicfor liquidsDN80 - 3"
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic transit-time, ultrasonic
- Fluid
- for liquids
- Pipe diameter
- DN80 - 3", DN50 - 2", DN25 - 1", DN300 - 12", DN1200 - 48", DN100 - 4", DN40 - 1"1/2, DN20 - 3/4", DN32 - 1"1/4, DN65 - 2"1/2, DN125 - 5", DN90 - 3"1/2, DN275 - 11", DN250 - 10", DN60 - 2"1/4, DN150 - 6", DN225 - 9", DN200 - 8", DN175 - 7"
- Installation
- vertical, clamp-on, horizontal
- Material
- plastic
- Communication
- 4-20 mA, RS485, Modbus RTU
- Supply voltage
- 24VDC, 220VAC
- Protection level
- IP67, IP68
- Applications
- for the food industry, industrial, for the pharmaceutical industry, for low flow rates, for test benches, for the petrochemical industry, for environmental analysis, for water treatment, for high flow rates, for the beverage industry, for dosing, high-pressure, for marine applications, for harsh environments, for the oil and gas industry, for district heating networks, for hydraulic applications, for tanks, irrigation, for filling applications, for pump calibration
- Other characteristics
- precision, compact, digital, with LCD display, electronic, programmable, with indicator-totalizer, high-temperature, with data logger, with energy calculator, maintenance-free, with temperature sensor, non-invasive
- Process temperature
Min.: -30 °C
(-22 °F)Max.: 160 °C
(320 °F)- Precision
1 %
Description
AI.FFsonic.2P is the ultimate professional solution for precise liquid flow measurement in closed ducts. Based on transit-time ultrasonic technology, this system ensures accurate measurements without interrupting flow or cutting pipes, thanks to its clamp-on transducers.
Why choose AI.FFsonic.2P?
Non-invasive installation: Thanks to external sensors (clamp-on), installation is quick and requires no downtime or hydraulic modifications.
Advanced Digital Technology: The system integrates a DSP (Digital Signal Processing) processor that ensures high noise immunity and excellent signal stability.
Extreme versatility: Supports pipes from 15 mm to 6000 mm in diameter and fluids with temperatures from -30°C to +160°C (with high-temperature sensors).
Complete monitoring: View instantaneous and total flow rate and fluid velocity in real time on the backlit alphanumeric display.
Main Technical Specifications
Pipe Diameter: 15 mm ÷ 6000 mm
Overall Accuracy: ± 1%
Protection: IP67 Enclosure / IP68 Transducers
Outputs: 4-20 mA, RS485 (Modbus RTU/ASCII), Relay, Pulse OCT
Data Logger: Integrated (up to 22 storable variables)
Power Supply: Multi-power supply 85-264 Vac or 8-36 Vdc
Interface: Italian / English
Common Applications
This instrument is ideal for a wide range of industrial sectors:
Water Management: Aqueducts, sewerage, leak monitoring, and seawater.
Process Industries: Chemical, petroleum, pharmaceutical, and food.
Energy: Thermoelectric and hydroelectric power plants.
HVAC: Thermal energy calculation via slot for PT100 probes (optional).
Technical Note
The device is designed to calculate thermal energy by connecting two 3-wire PT100 probes.
Why choose AI.FFsonic.2P?
Non-invasive installation: Thanks to external sensors (clamp-on), installation is quick and requires no downtime or hydraulic modifications.
Advanced Digital Technology: The system integrates a DSP (Digital Signal Processing) processor that ensures high noise immunity and excellent signal stability.
Extreme versatility: Supports pipes from 15 mm to 6000 mm in diameter and fluids with temperatures from -30°C to +160°C (with high-temperature sensors).
Complete monitoring: View instantaneous and total flow rate and fluid velocity in real time on the backlit alphanumeric display.
Main Technical Specifications
Pipe Diameter: 15 mm ÷ 6000 mm
Overall Accuracy: ± 1%
Protection: IP67 Enclosure / IP68 Transducers
Outputs: 4-20 mA, RS485 (Modbus RTU/ASCII), Relay, Pulse OCT
Data Logger: Integrated (up to 22 storable variables)
Power Supply: Multi-power supply 85-264 Vac or 8-36 Vdc
Interface: Italian / English
Common Applications
This instrument is ideal for a wide range of industrial sectors:
Water Management: Aqueducts, sewerage, leak monitoring, and seawater.
Process Industries: Chemical, petroleum, pharmaceutical, and food.
Energy: Thermoelectric and hydroelectric power plants.
HVAC: Thermal energy calculation via slot for PT100 probes (optional).
Technical Note
The device is designed to calculate thermal energy by connecting two 3-wire PT100 probes.
