Ultrasonic transit-time flow meter AI.FE-Sonic
ultrasonicfor liquidsDN80 - 3"

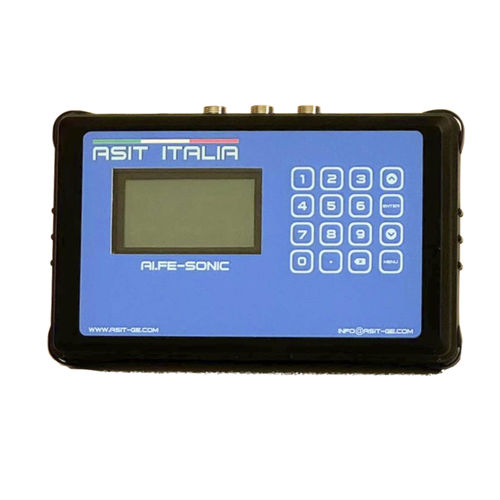

Ultrasonic transit-time flow meter - AI.FE-Sonic - ASIT ITALIA - ultrasonic / for liquids / DN80 - 3"
Ultrasonic transit-time flow meter - AI.FE-Sonic - ASIT ITALIA - ultrasonic / for liquids / DN80 - 3"
Ultrasonic transit-time flow meter - AI.FE-Sonic - ASIT ITALIA - ultrasonic / for liquids / DN80 - 3" - image - 2
Add to favorites
Compare this product
Go to the ASIT ITALIA website for more information

Characteristics

Technology
ultrasonic transit-time, ultrasonic
Fluid
for liquids
Pipe diameter
DN80 - 3", DN50 - 2", DN25 - 1", DN175 - 7", DN1200 - 48", DN100 - 4", DN40 - 1"1/2, DN250 - 10", DN32 - 1"1/4, DN225 - 9", DN275 - 11", DN65 - 2"1/2, DN125 - 5", DN150 - 6", DN200 - 8", DN300 - 12", DN60 - 2"1/4, DN90 - 3"1/2
Installation
vertical, clamp-on, horizontal
Communication
4-20 mA, RS485, Modbus
Protection level
IP68, IP54, NEMA 4
Applications
for high flow rates, industrial, for the pharmaceutical industry, for the food industry, for tanks, for low flow rates, for the petrochemical industry, for water treatment, laboratory, for the beverage industry, for pumping applications, for filling applications, for dosing, irrigation, for medical applications, for hydraulic applications, sanitary
Other characteristics
digital, compact, precision, with LCD display, remote, with indicator-totalizer, electronic, programmable, with battery, with data logger, with temperature sensor, non-invasive
Process temperature

Max.: 130 °C
(266 °F)

Min.: -40 °C
(-40 °F)

Precision

1 %

Description

AI.FE-Sonic is the ultimate professional tool for mobile flow and thermal energy measurement. Thanks to clamp-on technology, this portable system allows for precise diagnostics on pipes of almost any size and material without any service interruption.

Strengths
Ultra-Quick Installation: Thanks to the included mounting guides (single or double), sensor positioning is guided, quick and easy.
A Single Solution for Thousands of Pipes: With a single pair of sensors, you can cover pipes ranging from DN25 to DN1200 (from 1" to 48").
Complete Energy Analysis (BTU Function): In addition to flow rate, the instrument can calculate heat energy exchanged by integrating optional PT1000 temperature sensors.
Advanced Data Logging: Includes a 16GB SD card and dedicated software for downloading, viewing, and analyzing data recorded during measurement sessions.
Battery Life and Portability: Equipped with a rechargeable lithium battery that provides up to 16 hours of continuous operation, all stored in a sturdy aluminum carrying case.

Main Technical Specifications
Accuracy: ±1% of the measured value
Flow Range: From ±0.01 m/s to ±12 m/s
Pipe Materials: Carbon steel, stainless steel, PVC, and others
Outputs: Analog 4-20mA and digital Modbus RS485
Display: High-resolution backlit LCD (240x128)
Protection: IP54 transmitter, IP68 transducers (submersible)

Application Fields
Water and Sewerage: Leak detection and wastewater monitoring
Energy Audits: Calculating energy consumption in heat exchangers and thermal power plants
Industry: Ideal for the chemical, pharmaceutical, food, and paper industries

Complete Kit
The product is supplied in a professional case containing the transmitter, a pair of transducers, mounting guides, cable ties, coupling compound, and a battery charger
