Ultrasonic transit-time flow meter AI.UP-Sonic

ultrasonicfor liquidsDN50 - 2"

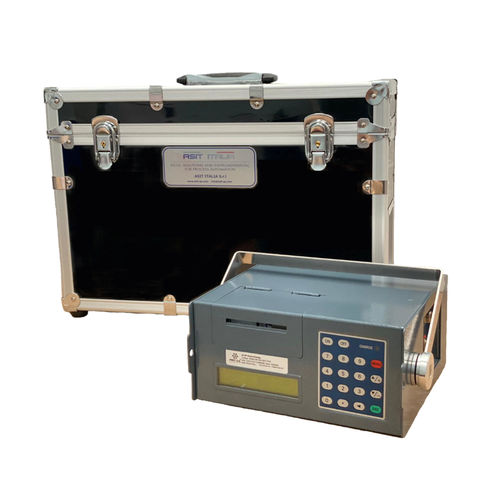

AI.UP-sonic is a professional all-in-one system designed for high-precision flow measurement and thermal energy calculation. Supplied in a sturdy protective case, it features a built-in thermal printer and an SD card slot, making it the ideal tool for comprehensive energy audits and instant reporting in the field.

Why choose AI.UP-sonic?
Advanced Thermal Analysis: Thanks to the ability to connect PT100 sensors (3-wire), it calculates thermal energy with selectable units of measurement including GJ, KC, KWh, and BTU.
Instant Reporting: The integrated thermal printer allows you to issue receipts with real-time measurement data, while the SD card ensures secure storage for post-processing analysis.
Extended Battery Life: The internal rechargeable Ni-MH battery provides over 24 hours of continuous operation, ensuring operation even during extended work shifts.
Accuracy and Reliability: Transit-time technology with 1% accuracy and clamp-on transducers that do not require flow interruption or drilling holes in the pipes.

Technical Specifications
Accuracy: ± 1% (Linearity 0.5%, Repeatability 0.2%)
Pipe Diameter: From DN20 mm to DN6000 mm
Display: 2x10 character backlit LCD (Ita/Eng)
Housing Material: Rugged aluminum
Outputs/Interface: RS485 serial
Fluid Temperature: -30°C to +160°C (with HT sensors)
Data Storage: External SD card slot

Common Applications
The instrument is extremely versatile and suitable for:
HVAC systems: Monitoring thermal efficiency and system balancing.
Industrial Maintenance: Verification of fixed flow meters and leak detection in water mains or sewer systems.
Chemical and Petroleum Industry: Measurement of oils, petroleum, and chemicals thanks to its high turbidity tolerance (up to 10,000 ppm).

Kit Configuration
The AI.UP-sonic system can be customized by including different types of sensors (small, medium, large, or high-temperature) and the AI.TM8812 thickness gauge to ensure correct pipe parameter settings.
