Ultrasonic transit-time flow meter AI.PFSonic.2

ultrasonicfor liquidsDN20 - 3/4"

The AI.PF.Sonic.2 is the ultimate portable solution for professionals who need fast, accurate measurements on the go. This "transit-time" system combines laboratory-grade precision with the ruggedness needed for field use, all housed in a convenient, protective case.

Why choose the AI.PF.Sonic.2?
Maximum Portability: Designed for energy audits and quick checks, it features a rechargeable battery that provides over 12 hours of continuous operation.
Non-Invasive Measurement: Thanks to clamp-on transducers, you can measure flow rate without interrupting the flow, without pressure drops, and without any modifications to existing pipes.
Comprehensive Data Management: Includes a built-in data logger (24kbps) and supports expansion via an external data logger with a 4GB SD card for easy downloading of .txt files to your PC.
Material Versatility: Works on almost all types of pipes, including steel, cast iron, copper, PVC, aluminum, and even concrete or fiberglass.

Technical Specifications
Accuracy: ± 1% (Linearity 0.5%, Repeatability 0.2%)
Pipe Range: From DN15 mm to DN6000 mm (depending on sensors)
Display: Backlit LCD 4x16 characters (Italian/Eng)
Flow Velocity: 0 ~ ±32 m/s
Built-in rechargeable Ni-MH battery
Outputs: RS232C serial interface
Liquid Temperature: -30°C to +160°C (with HT transducers)

Measurable Liquids
Ideal for monitoring:
Water: Drinking, chilled, hot, seawater, and wastewater
Hydrocarbons: Crude oil, diesel, lubricating oil, and fuel
Chemistry: Alcohol and other liquids with turbidity up to 10,000 ppm

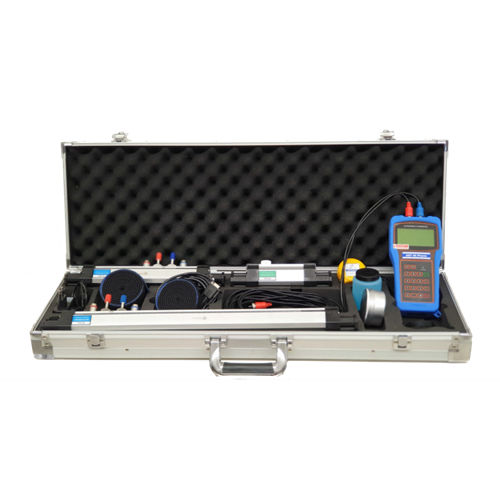

Kit Contents
The system is supplied in a professional case that includes the portable unit, selected clamp-on transducers, connection cables, and a power supply. It can be integrated with the AI.TM8812 ultrasonic thickness gauge for perfect wall thickness calibration.
