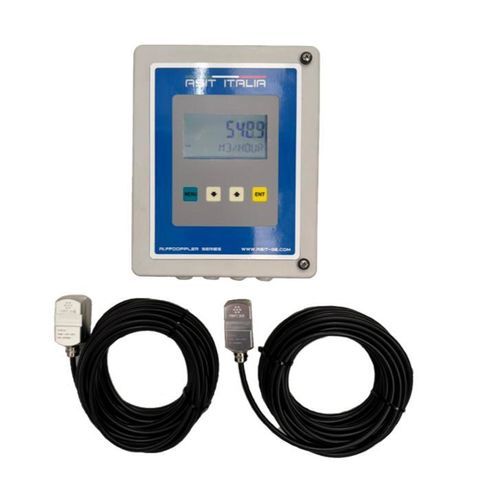

Doppler ultrasonic flow meter AI.FFDopplerIF-Wvolumefor liquidsfor wastewater
Add to favorites
Compare this product
Characteristics
- Technology
- Doppler ultrasonic
- Type
- volume
- Fluid
- for liquids, for wastewater, for sludge
- Installation
- clamp-on
- Material
- aluminum, plastic
- Communication
- 4-20 mA, analog output
- Supply voltage
- 24VDC, 220VAC
- Protection level
- IP68, IP66
- Applications
- industrial, for the pharmaceutical industry, for the food industry, for the petrochemical industry, for water treatment, for the beverage industry, for the oil and gas industry, for hydraulic applications, sewage sludge, for granular products, irrigation, for harsh environments, for pumping applications
- Other characteristics
- with LCD display, high-temperature, non-invasive
- Process temperature
Min.: -35 °C
(-31 °F)Max.: 200 °C
(392 °F)- Precision
0.5 %, 2 %
Description
Description
The AI.FFdopplerIF-W is a clamp-on ultrasonic Doppler flowmeter for accurate volumetric flow measurement in closed pipes conveying dirty liquids, slurries or air-entrained fluids. Using Doppler backscatter from suspended particles or bubbles, it delivers reliable readings where transit-time meters cannot operate. The clamp-on sensors attach externally for non-invasive installation and continuous monitoring without pipe penetration or line shutdown.
Key features
Common applications
Technical specifications
The AI.FFdopplerIF-W is a clamp-on ultrasonic Doppler flowmeter for accurate volumetric flow measurement in closed pipes conveying dirty liquids, slurries or air-entrained fluids. Using Doppler backscatter from suspended particles or bubbles, it delivers reliable readings where transit-time meters cannot operate. The clamp-on sensors attach externally for non-invasive installation and continuous monitoring without pipe penetration or line shutdown.
Key features
- Installation range: suitable for pipe diameters from 40 mm to 4000 mm
- Low-flow sensitivity: velocity measurement from 0.05 m/s up to 12 m/s
- High-temperature transducers: operational between -35°C and +200°C
- Rugged construction: control unit in fiberglass enclosure rated IP66 and sensors up to IP68 for harsh environments
- Easy integration: 4-20 mA outputs, relays and OCT for PLC or SCADA connection
Common applications
- Raw wastewater and drainage
- Activated and chemical sludges
- Groundwater monitoring and mining recirculation
Technical specifications
- Accuracy: 0.5% – 2.0% F.S.
- Display: 2-line LCD (velocity and resettable total)
- Power supply: 85–265 VAC or 24 VDC
- Sensor material: aluminum
- Cable length: standard 10 m (extendable up to 300 m)
- Installation note: For optimal Doppler response, the fluid should contain at least 100 ppm of reflective particles, with at least 20% larger than 100 μm
