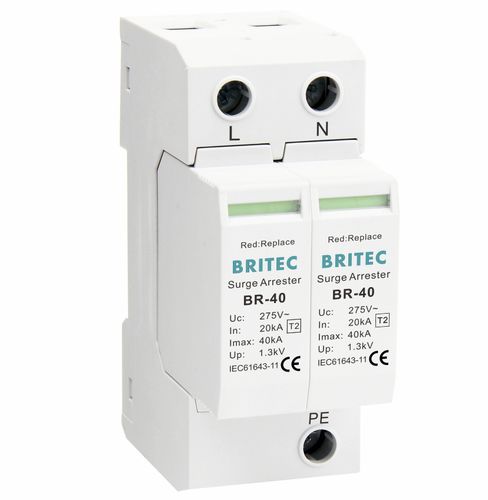

type 2 surge arrester / varistor / plug-in / thermoplastic
BR-40 2P

{{requestButtons}}

Characteristics

  • Type:

    type 2

  • Other characteristics:

    with fault indication, 2-pole, varistor, fast-response, DIN rail, plug-in, screw-in, low-voltage, AC, thermoplastic

  • Applications:

    remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line

  • Current:

    20,000 A

    Max.: 40,000 A

  • Voltage:

    150 V, 275 V, 320 V, 385 V, 440 V

Description

Features:

Thermal stability 100A without additional protection.
Patented fast tripping mechanism.
SEMKO approval.
Uc 150V / 275V / 320V / 385V / 440V can be achieved.
Protection class: Type 2 , Class II.
Pole number:1P,2P,3P,4P,1+1NPE,3+1NPE.
BR-40 2 pole surge arrester is suitable for TN-S system.
