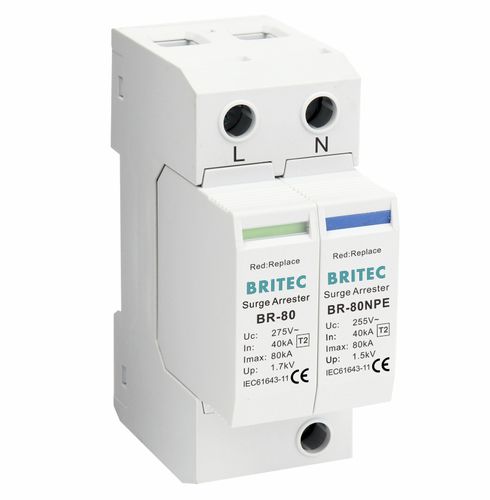

Type 2 surge protection unit BR-80 1+1class IIfor power suppliesanti-surge
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for power supplies, anti-surge, electronic equipment, for transient current protection, remote signaling, for electrical installations
- Other characteristics
- N-PE, compact, varistor, fast response time, with fault indication, modular, DIN rail, plug-in, single-phase, low-voltage, AC
- Voltage
275 V
Max.: 385 V
Min.: 150 V
- Primary current
Max.: 80,000 A
Min.: 40,000 A
- Open circuit voltage
Max.: 2.3 kV
Min.: 1 kV
Description
Features:
Max. discharge current (8/20 µs), Imax – 80kA.
Mounted: DIN rail.
Low voltage protection level.
Visual indication, green to red, when replacement of the cartridge is required.
Employs metal oxide varistor (MOV) technology.
Thermal isolating arrester disconnector offers a high level of protection against overload.
Compact size, good performance.
Catalogs
BR-80 1+1
1 Pages
