- Type 2 surge protection unit
- Britec Electric Co., Ltd

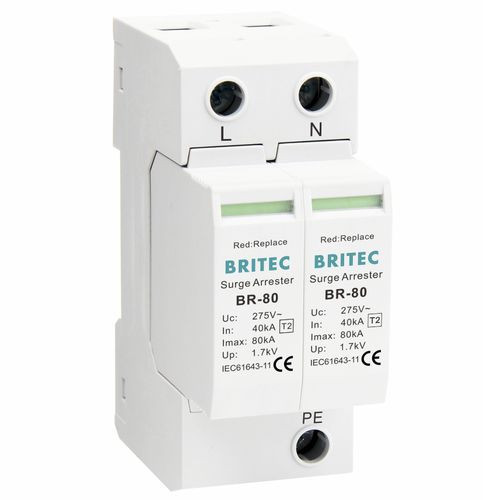

Type 2 surge protection unit BR-80 2Pclass IIfor power suppliesanti-surge
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for power supplies, anti-surge, electronic equipment, for transient current protection, remote signaling
- Other characteristics
- fast response time, compact, varistor, with fault indication, 2-pole, modular, DIN rail, plug-in, low-voltage, single-phase, AC
- Voltage
Min.: 150 V
Max.: 385 V
275 V
- Primary current
Min.: 40,000 A
Max.: 80,000 A
40,000 A
Description
Features:
Low price surge protection device (SPD).
Type 2 or Class II test level.
Max. discharge current (8/20 µs), Imax – 80kA.
Mounted: DIN rail.
Low voltage protection level.
Visual indication, green to red, when replacement of the cartridge is required.
Remote signal contacts: optional.
Employs metal oxide varistor (MOV) technology.
Base element and plug-in cartridge, easy maintenance.
Thermal isolating arrester disconnector offers a high level of protection against overload.
Compact size, good performance and best surge protector for your power supply system.
Catalogs
BR-80 2P
1 Pages
