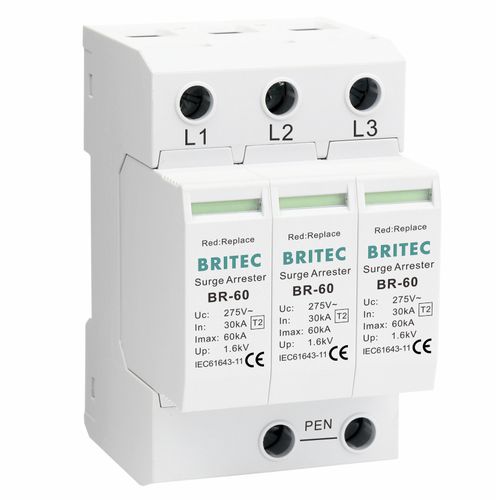

Type 2 surge protector BR-60 3P seriesclass IIfor electrical installationsremote signaling
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- anti-surge, for power supplies, for electrical installations, electronic equipment, remote signaling, for transient current protection, electrical line, for electrical networks
- Other characteristics
- three-phase, compact, modular, varistor, fast response time, 3-pole, low-voltage, AC, DIN rail, plug-in, thermoplastic
- Voltage
Min.: 150 V
Max.: 385 V
- Primary current
30,000 A, 60,000 A
Description
Clss C/ II Surge protector consisting of 3 base part and MOV plug-in protection modules.
High energy MOV inside.
Low residual voltage and quick response.
Reliable control.
With remote signaling contact for control device.
Fault indication via red mark in the inspection window.
Application:
For using in the lightning protection zones concept at boundary 1-2.
It protect to indirect and direct lightning effect or other transient over voltage.
Surge arrester is suitable for lightning and surge protection in AC 50/60Hz.
For AC power line of house, bank, and telecom tower and so on.
Protecting low-voltage consumers’ installations against indirect lightning discharges.
Used to guard sensitive equipment from voltage spike.
