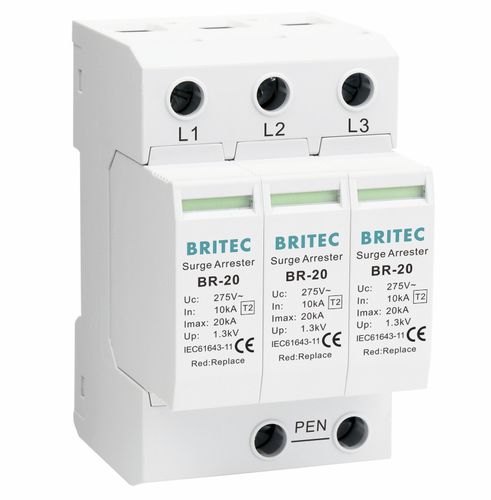

3-pole surge protector BR-20 3P seriestype 2class IIfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- remote signaling, anti-surge, for power supplies, for electrical installations, electronic equipment, for transient current protection, telecommunications, electrical line, for data and telecommunication lines, for computer networks, for electrical networks, for LED lighting
- Other characteristics
- varistor, compact, modular, fast response time, 3-pole, low-voltage, three-phase, AC, DIN rail, plug-in, thermoplastic
- Voltage
Max.: 440 V
Min.: 150 V
- Primary current
10,000 A, 20,000 A
Description
– For using in the lightning protection zones concept at boundary 1-2.
– Low residual voltage and quick response.
– Reliable control.
– The SPD functions to conduct the surge voltage / current to earth and effectively prevents the destruction of downstream equipment.
– With remote signaling contact for control device.
– Plug in replacement module unit allows for easy replacement when necessary.
– Fault indication via red mark in the inspection window.
Application:
• It is used to protect the branch distribution of intelligent building, electric power, communication, security and other industries
• Surge protective devices are used for lightning and overvoltage protection in AC50/60Hz,
