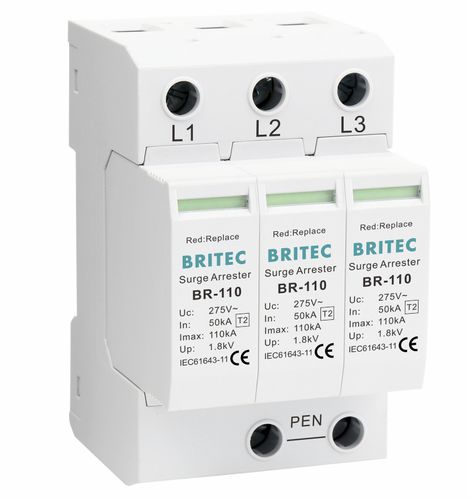

Type 2 surge protection unit BR-110 3Pclass IIanti-surgefor power supplies
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- anti-surge, for power supplies, electronic equipment, for transient current protection, remote signaling, high-energy, for electrical installations
- Other characteristics
- varistor, 3-pole, modular, DIN rail, low-voltage, AC, three-phase
- Voltage
275 V, 320 V, 385 V
- Primary current
Max.: 110,000 A
50,000 A
Min.: 50,000 A
Description
Features:
– Class II / Type 2 surge protection device.
– Available with nominal / maximum discharge current 50kA/110kA
– The core parts are metal oxide varistor components with high discharge capacity.
– Excellent performance and favorable price
– Low residual voltage and quick response.
– This surge protective device is used for lightning and overvoltage protection in AC50/60Hz.
– Reliable control
– BR-110 series surge protector devices (SPD) are the best products to protect the low voltage power network from lightning or surge over voltage.
– Fault indication via red mark in the inspection window.
