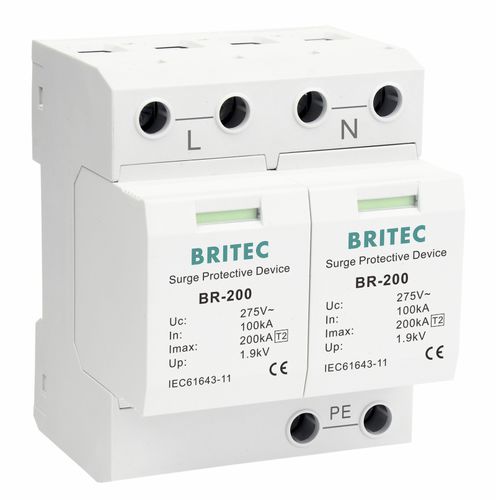

2-pole surge protector BR-200 2P seriestype 2class IIfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- anti-surge, for power supplies, for electrical installations, electronic equipment, for transient current protection, electrical line
- Other characteristics
- fast response time, compact, modular, varistor, 2-pole, low-voltage, single-phase, thermoplastic, AC, DIN rail, plug-in, screw-in
- Voltage
275 V, 320 V, 385 V
- Primary current
100,000 A, 200,000 A
Description
– Class II / Type 2 surge protection device.
– Available with nominal / maximum discharge current
– The core parts are metal oxide varistor components with high discharge capacity.
– Excellent performance and favorable price
– Low residual voltage and quick response.
– This surge protective device is used for lightning and overvoltage protection in AC50/60Hz.
– Reliable control
– BR-200 series surge protector devices (SPD) are the best products to protect the low voltage power network from lightning or surge over voltage.
– Fault indication via red mark in the inspection window.
Application:
• For using in the lightning protection zones concept at boundary 1-2.
• The SPD surge protector can provide protection for single-phase power system from lightning strikes and voltage surge
