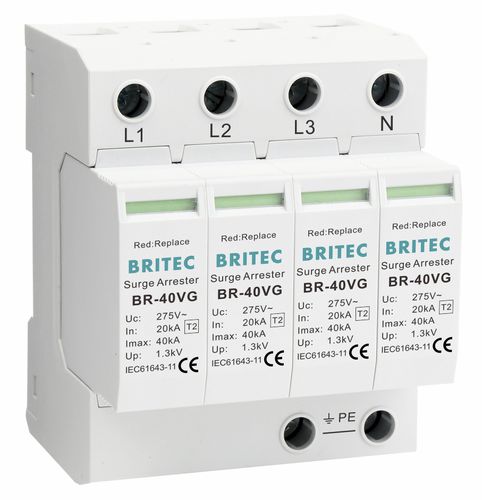

Type 2 surge protector BR-40VG 4P seriesclass IIfor electrical installationsremote signaling
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for electrical installations, remote signaling
- Other characteristics
- DIN rail, plug-in
- Voltage
Max.: 440,000 V
Min.: 150 V
- Primary current
20,000 A, 40,000 A
Description
Surge protective device, plug.
Standard: IEC/EN 61643-11
Hot melt flow double protection.
The visual window color said protector working state; green (normal), red (fault).
The reaction time of less than 100 ns.
Number of poles: 4;
Short circuit current: up to 40kA (8/20μs);
Remote signaling can select.
It is designed as module and 35mm din rail mounting.
Consisting of a base part and plug-in protection modules.
Application:
Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
In order to shunt and pressure to limit indirect lightning current or other instantaneous overvoltage.
