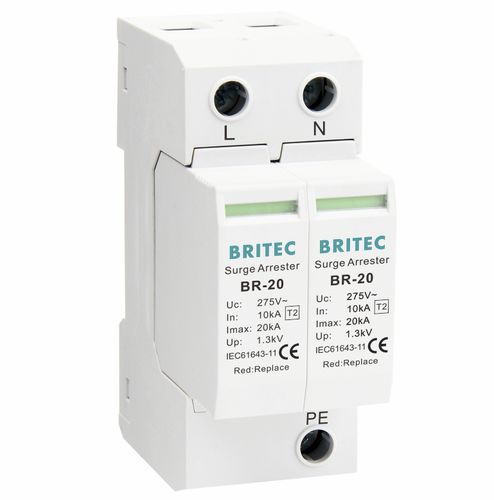

2-pole surge arrester BR-20 2P seriestype 2class IIfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for power supplies, remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, anti-surge, for electrical networks, for electrical control panels
- Other characteristics
- with fault indication, compact, varistor, 2-pole, thermoplastic, modular, fast-response, low-voltage, AC, single-phase, DIN rail, plug-in
- Voltage
Max.: 440 V
Min.: 150 V
- Primary current
10,000 A, 20,000 A
Description
• Designed according to IEC 61643-11.
• Single-phase protection for TN-S system.
• Pluggable module, easy for installation and maintenance.
• High discharge capacity, quick response.
• Green window will change when fault.
• Remote alarm control: Optional.
Application:
• Protecting low voltage equipment from surge damages.
• Applied in modular SPD Class II (Class C) for TN-S power supply system.
• Suitable to 220V AC power systems for protection of equipment from surges and transient over-voltages caused by external factors (such as are lightning strokes, electromagnetic impulses and interferences, etc.)
