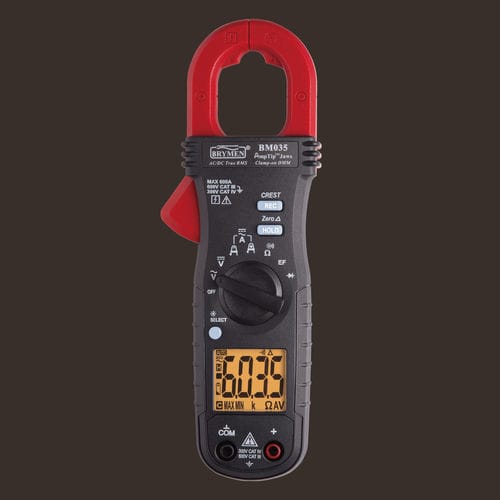

6000 count digital clamp multimeter BM035
portable300 V600 V

6000 count digital clamp multimeter - BM035 - BRYMEN - portable / 300 V / 600 V
6000 count digital clamp multimeter - BM035 - BRYMEN - portable / 300 V / 600 V
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V, 300 V
Max current
600 A
Safety rating
cat III, cat IV
Power supply
AAA LR03 batteries
Applications
industrial
Other characteristics
AC/DC, true RMS
Max DC voltage

600 V

Max AC voltage

600 V

Max DC current

60 A

Max AC current

60 A, 600 A

Max resistance measure

Max.: 600,000 Ohm

Min.: 600 Ohm

DC voltage precision

1 %

AC voltage precision

1.5 %

DC current precision

1 %

AC current precision

1 %, 1.5 %, 2 %

Resistance precision

1 %

Process temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Length

188 mm
(7.4 in)

Width

66 mm
(2.6 in)

Height

32 mm
(1.26 in)

Weight

202 g
(7.13 oz)

Description

Full Functions & True-RMS For Your Tasks In 600A Cat-III 600V Areas! BeepLit™ Continuity & Diode, CREST MaxMin, REC MaxMin, Relative, Hold, Backlight AmpTip™ ACA DCA, LPF ACV, DCV, kΩ, Hi-Lo EF NCV DUAL SENSITIVITIES EF-DETECTION - Features Non-Contact (NCV) & Single-Probe Voltage Detection For Identifying Live Lines; Added User Selectable Hi/Lo Sensitivities MAX CONDUCTOR SIZE 26mm, 600Amps - Features 600A Hall-effect Jaws ACA/DCA Model CREST MaxMin IN-RUSH CURRENTS - Fast Captures In-rush +/- Peak Signals At Durations As Short As 5ms; Automatic APO Disable Feature REC MaxMin DISPLAY READINGS - Records Max & Min Readings Over Time; Automatic APO Disable Feature RELATIVE ZERO & DC_ZERO - REL For Convenient Readings Comparison; DC_Zero For DCA Residue Offset DATA HOLD - Freezes The Displaying Reading For Later View INNOVATIVE BeepLit™ DIODE TEST - Short-Beep Alert On Forward Voltages <0.85V; Beep & Backlight Effects For Shorted Diodes INNOVATIVE BeepLit™ CONTINUITY - Quick Open-short Tests On Switches And Wires; Beep & Backlight Effects For Noisy Environments RESISTANCE - Best Resolution 0.1Ω At 600Ω Range; 2 Auto-ranges Up To 6kΩ TRANSIENT PROTECTION - Up To 6kV 1.2/50µs Lightning Surge; Fully Certified By Independent Test Lab; Years Of Credibility For Serious Users PATENTED AmpTip™ CLAMP JAWS - Easy Access & Excellent Repeatability For Measuring Thin Conductors In Tight Areas LVD CAT III 600V & CAT IV 300V - Certified EN61010-2-032, EN61010-2-033, EN61010-1 & Relevant Standards On CAT III 600V & CAT IV 300V REGULAR CURRENT - Measures At Jaw Center For Regular Conductors Up To 600 Amps
