6000 count digital clamp multimeter BM089
portable1000 V600 V

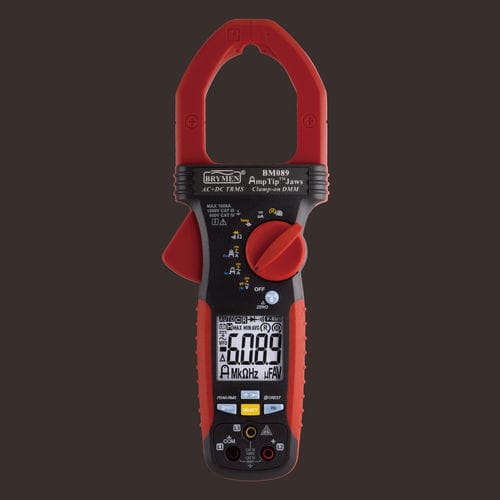

6000 count digital clamp multimeter - BM089 - BRYMEN - portable / 1000 V / 600 V
6000 count digital clamp multimeter - BM089 - BRYMEN - portable / 1000 V / 600 V
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V, 1000 V
Max current
1000 A, 600 A, 60 A
Safety rating
cat III
Protection level
rugged, EMC
Applications
industrial, for HVAC
Other characteristics
AC/DC, TRMS
Max DC voltage

600 V, 1,000 V

Max AC voltage

600 V, 1,000 V

Max DC current

0.2 mA, 2 mA, 60 mA

Max AC current

60 A, 600 A, 1,000 A

Max resistance measure

Max.: 60,000 Ohm

Min.: 600 Ohm

Max capacity measure

200 µF, 2,500 µF

DC voltage precision

0.8 %

AC voltage precision

0.8 %, 1 %, 1.5 %

DC current precision

1 %, 1.5 %

AC current precision

1.5 %, 2 %, 2.2 %, 2.5 %

Resistance precision

1 %

Process temperature

Max.: 50 °C
(122 °F)

Min.: -10 °C
(14 °F)

Length

258 mm
(10.16 in)

Width

94 mm
(3.7 in)

Height

44 mm
(1.73 in)

Weight

392 g
(13.83 oz)

Description

Innovative AmpTip Jaws For Slim-Conductors In CAT-III 1000V Areas Deluxe All-In-One AC/DC 1000A, 3-Terminal RST Phase-Rotation, HVAC, AC+DC TRMS DCμA - For HVAC Flame Sensors Testing Via Test Probes PHASE ROTATION - Dual Sensitivity Modes For Both Motors And Supply Systems CAPACITANCE - 2 Auto-Ranges Up To 2500μF To Measure Motor Capacitors RESISTANCE - 3 Auto-Ranges Up To 60kΩ Best Resolution 0.1Ω At 600Ω Range ERGONOMIC & STREAMLINE BODY - Also Comes With A Soft Pouch For Easy Carrying & Protection DATA HOLD - Freezes The Displaying Reading For Later View RELATIVE ZERO & DC_ZERO - For Convenient Readings Comparison As Well As DC Jaws Hysteresis Offset 0.8% DCV BASIC ACCURACY - DCV 2 Auto-Ranges To 1000V; ACV 2 Auto-Ranges To 1000V 5ms CREST-MAX - Captures In-Rush Peak Signals Of ACA Or ACV As Short As 5ms In Duration CONVENIENT Hz BUTTON - Toggles Between Amps & Hz VIA Jaws, Or Volts & Hz VIA Test Probes RUGGED & DURABLE - High-Impact Fire-Retarded Enclosure With Battery Compartment & Access Door TRANSIENT PROTECTION - Up To 8kV 1.2/50μs Lightning Surge; More Confidence For Serious Users EMC - Meets EN61326-1:2006(EN55022, EN61000-3-2/-3 & EN61000-4-2/-3/-4/-5/-6/-8/-11 ) BACKLIGHTED LCD DISPLAY - For Easy Viewing In The Dark
