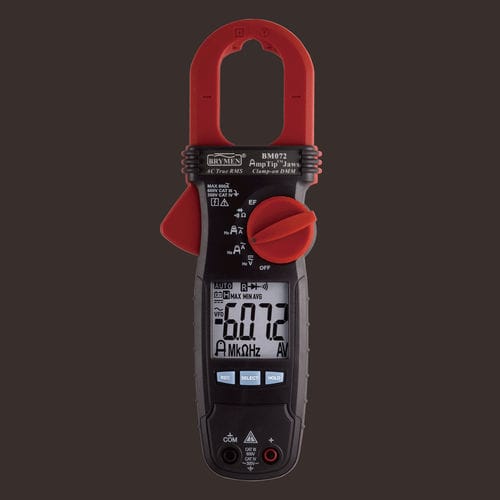

6000 count digital clamp multimeter BM072
portable600 V600 A

6000 count digital clamp multimeter - BM072 - BRYMEN - portable / 600 V / 600 A
6000 count digital clamp multimeter - BM072 - BRYMEN - portable / 600 V / 600 A
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V
Max current
600 A
Safety rating
cat III
Power supply
AAA LR03 batteries
Applications
industrial
Other characteristics
AC/DC, TRMS
Max DC voltage

600 V

Max AC voltage

600 V

Max AC current

60 A, 600 A

Max resistance measure

Max.: 60,000 Ohm

Min.: 600 Ohm

DC voltage precision

1 %

AC voltage precision

1 %

AC current precision

Max.: 2.7 %

Min.: 1.5 %

Resistance precision

1 %

Length

217 mm
(8.54 in)

Width

76 mm
(2.99 in)

Height

37 mm
(1.46 in)

Weight

186 g
(6.56 oz)

Description

Innovative AmpTip Jaws For Slim-Conductors In CAT-III 600V Areas Ergonomic All-In-One AC 600A. AC TRMS RESISTANCE - 3 Auto-Ranges Up To 60kΩ Best Resolution 0.1Ω At 600Ω Range ERGONOMIC & STREAMLINE BODY - Also Comes With A Soft Pouch For Easy Carrying & Protection 1.0% DCV BASIC ACCURACY - DCV Up To 600V; ACV Up To 600V RELATIVE ZERO & DC_ZERO - For Convenient Readings Comparison As Well As DC Jaws Hysteresis Offset DATA HOLD - Freezes The Displaying Reading For Later View RUGGED & DURABLE - High-Impact Fire-Retarded Enclosure With Battery Compartment & Access Door TRANSIENT PROTECTION - Up To 6kV 1.2/50μs Lightning Surge; More Confidence For Serious Users EMC - Meets EN61326-1:2006(EN55022, EN61000-3-2/-3 & EN61000-4-2/-3/-4/-5/-6/-8/-11 ) RECORD MAX / MIN / AVG - Records Max, Min, & Calculates AVG Readings Over Time. Auto-Ranging AUTO-POWER-OFF - Extends Battery Life FULLY AUTO-RANGING DMM - Shortens The Time To Measure And Increases The Ease Of Use VFD V & Hz FEATURE - Measures Fundamental Voltage & Frequency Of Most Variable Frequency Drives AmpTip LOW-CURRENT & Hz - Ergonomically Measures At Jaw Tip For Small-Sized Conductors Up To 60 Amps REGULAR CURRENT & Hz - Measures At Jaw Center For Regular Conductors Up To 600 Amps FAST AUDIBLE CONTINUITY - For Quick Open-Short Tests On Switches, Fuses, And Wires
