6000 count digital clamp multimeter BM033
portable300 V600 V

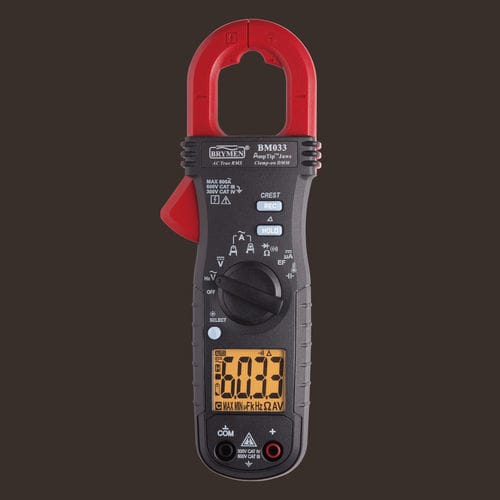

6000 count digital clamp multimeter - BM033 - BRYMEN - portable / 300 V / 600 V
6000 count digital clamp multimeter - BM033 - BRYMEN - portable / 300 V / 600 V
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V, 300 V
Max current
600 A
Safety rating
cat III, cat IV
Additional features
with thermometer
Power supply
AAA LR03 batteries
Applications
industrial
Other characteristics
AC/DC, true RMS
Max DC voltage

600 V

Max AC voltage

600 V

Max DC current

0.2 mA, 2 mA

Max AC current

60 A, 600 A

Max resistance measure

Max.: 6,000,000 Ohm

Min.: 600 Ohm

Max capacity measure

200 µF, 2,500 µF

DC voltage precision

1 %

AC voltage precision

1.5 %

DC current precision

1 %

AC current precision

1.5 %, 2 %

Resistance precision

1 %

Process temperature

Max.: 400 °C
(752 °F)

Min.: 0 °C
(32 °F)

Length

188 mm
(7.4 in)

Width

66 mm
(2.6 in)

Height

32 mm
(1.26 in)

Weight

158 g
(5.57 oz)

Description

Full Functions & True-RMS For Your Tasks In 600A Cat-III 600V Areas! BeepLit™ Continuity & Diode, CREST MaxMin, REC MaxMin, Relative, Hold, Backlight AmpTip™ ACA DCA, LPF ACV, LPF Hz, DCV, MΩ, Cx, °C, °F, μA, Hi-Lo EF NCV DUAL SENSITIVITIES EF-DETECTION - Features Non-Contact (NCV) & Single-Probe Voltage Detection For Identifying Live Lines; Added User Selectable Hi/Lo Sensitivities MAX CONDUCTOR SIZE 26mm, 600Amps - Features 600A Extra-slim Jaws ACA Model CREST MaxMin IN-RUSH CURRENTS - Fast Captures In-rush +/- Peak Signals At Durations As Short As 5ms; Automatic APO Disable Feature REC MaxMin DISPLAY READINGS - Records Max & Min Readings Over Time; Automatic APO Disable Feature RELATIVE ZERO - REL For Convenient Readings Comparison DATA HOLD - Freezes The Displaying Reading For Later View INNOVATIVE BeepLit™ DIODE TEST - Short-Beep Alert On Forward Voltages <0.85V; Beep & Backlight Effects For Shorted Diodes DCµA - For HVAC Flame Sensors Testing Via Test Probes TYPE-K TEMPERATURE - Selectable ºC And ºF Readings; Comes With Bkp60 Bead Probe CAPACITANCE - 2 Auto-ranges Up To 2500µF To Measure Motor Capacitors INNOVATIVE BeepLit™ CONTINUITY - Quick Open-short Tests On Switches And Wires; Beep & Backlight Effects For Noisy Environments RESISTANCE - Best Resolution 0.1Ω At 600Ω Range; 5 Auto-ranges Up To 6000kΩ TRANSIENT PROTECTION - Up To 6kV 1.2/50µs Lightning Surge; Fully Certified By Independent Test Lab; Years Of Credibility For Serious Users PATENTED AmpTip™ CLAMP JAWS - Easy Access & Excellent Repeatability For Measuring Thin Conductors In Tight Areas

Catalogs

No catalogs are available for this product.

See all of BRYMEN‘s catalogs
