6000 count digital clamp multimeter BM176D
portable600 V600 A

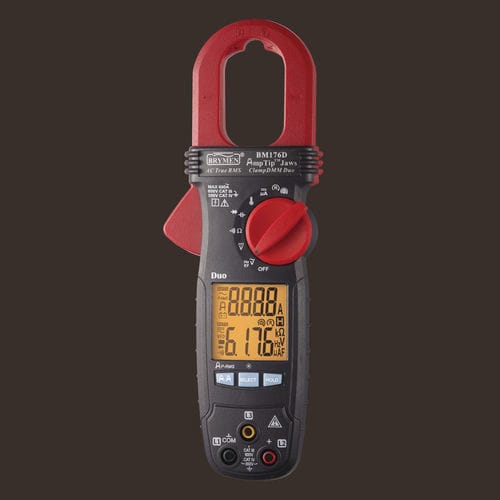

6000 count digital clamp multimeter - BM176D - BRYMEN - portable / 600 V / 600 A
6000 count digital clamp multimeter - BM176D - BRYMEN - portable / 600 V / 600 A
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V
Max current
600 A
Safety rating
cat III
Additional features
with thermometer
Power supply
AAA LR03 batteries
Applications
industrial
Other characteristics
AC/DC
Max DC voltage

600 V

Max AC voltage

600 V

Max DC current

0.2 mA, 2 mA

Max AC current

60 A, 600 A

Max resistance measure

Max.: 6,000,000 Ohm

Min.: 600 Ohm

Max capacity measure

200 µF, 2,500 µF

DC voltage precision

1 %

AC voltage precision

1 %

DC current precision

1 %

AC current precision

1.5 %, 1.8 %, 2 %

Resistance precision

1 %, 1.2 %

Process temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Length

217 mm
(8.54 in)

Width

76 mm
(2.99 in)

Height

37 mm
(1.46 in)

Weight

186 g
(6.56 oz)

Description

Duo-core Dual Measurements A + V, VFD, HVAC, RST, AmpTip™ & Much More! Convenient Measurements Of Amps + A DMM Function! Large Ohms, DCμA & Temperature For HVAC! Patented AmpTip™ Jaws For Thin Conductors! Patented 3-Terminal RST For Power & Motors! EF-Detection (NCV) With Hi/Lo Sensitivities! +Visible Continuity For Noisy Environments! Measures VFD V/Hz With Low Pass Filter! Peak-RMS To Capture In-rush Currents! Hi/Lo EF-DETECTION - Both Non-Contact (NCV) & Single-Probe Voltage Detection For Identifying Live Lines; Selectable Hi/Lo Sensitivities ACA 30mm AmpTip™ CLAMP JAWS - For Large & Small Conductors With AC TRMS 600A Capability DCμA - For HVAC Flame Sensors Testing Via Test Probes PHASE ROTATION - Two Sensitivity RST Modes For Both Supply Systems And Motors CAPACITANCE - 2 Auto-ranges Up To 2500μF To Measure Motor Capacitors 6000kΩ RESISTANCE - 5 Auto-ranges Up To 6000kΩ Best Resolution 0.1Ω At 600Ω Range ERGONOMIC & STREAMLINE BODY - Also Comes With A Soft Pouch For Easy Carrying & Protection DUO-CORE MEASUREMENTS - To Conveniently Measure Amps + Volts Or Another DMM Function DATA HOLD - Freezes The Displaying Reading For Later View RUGGED & DURABLE - High-impact Fire-retarded Enclosure With Battery Compartment & Access Door 1.0% DCV BASIC ACCURACY - DCV Up To 600V; ACV Up To 600V TRANSIENT PROTECTION - Up To 6kV 1.2/50μs Lightning Surge; More Confidence For Serious Users EMC - Meets EN61326-1:2013 BACKLIGHTED LCD DISPLAY - For Easy Viewing In The Dark REGULAR CURRENT - Measures At Jaw Center For Regular Conductors Up To 600Amps AmpTip™ LOW-CURRENTS - Calibrated To Measure At Jaw Tip For Small-sized Conductors Up To 60 Amps
