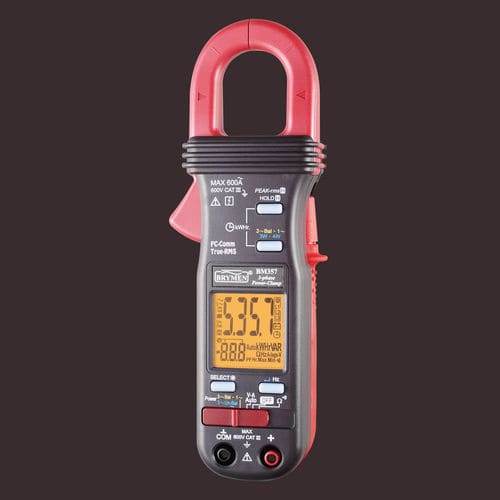

6000 count digital clamp multimeter BM357s
portable600 V600 A

6000 count digital clamp multimeter - BM357s - BRYMEN - portable / 600 V / 600 A
6000 count digital clamp multimeter - BM357s - BRYMEN - portable / 600 V / 600 A
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V
Max current
600 A
Safety rating
cat III
Additional features
frequency
Protection level
EMC
Max DC voltage

600 V

Max AC voltage

600 V

Max AC current

40 A, 400 A, 600 A

Max resistance measure

Max.: 1,000 Ohm

Min.: 0 Ohm

DC voltage precision

0.5 %

AC voltage precision

0.5 %, 1.5 %, 2.5 %

AC current precision

1 %, 2 %, 2.5 %, 3 %

Resistance precision

1 %

Process temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Length

189 mm
(7.44 in)

Width

78 mm
(3.07 in)

Height

40 mm
(1.57 in)

Weight

192 g
(6.77 oz)

Description

A Handy Yet Most Complete Slim-Jaws PowerClamp! Full Power Functions Plus kWHr Recording & 3~Unbalanced-Load Power For Advanced Applications! 65ms PEAK-RMS HOKD - Captures In-Rush RMS Values Of ACA Or ACV As Short As 65ms In Duration DATA HOLD - Freezes The Displaying Reading For Later View PROBE HOLDERS - Built-In Probe Storage Holders BATTERY COMPARTMENT - With Access Door For Easy Battery Replacement kWHr RECORDING - Records Both 3~ Balanced-Load & 1~ Kilo-Watt-Hour Readings With Last Memory Recall A-lags-V INDICATION - Unambiguous Indications Of Current Lags Voltage In Inductive Circuits HIGH CURRENT ACA Hz - Measures Non-Invasive ACA Frequency VIA Clamp Jaws HIGH VOLTAGE ACV Hz - Measures Noisy High Voltage ACV Frequency VIA Test Leads 250μs FAST AUDIBLE CONTINUITY - For Quick Open-Short Tests On Switches, Fuses, And Wires RESISTANCE - Up To 999.9 OHMS, 0.1 OHM Resolution With 600V Protection TRANSIENT PROTECTION - Up To 6kV 1.2/50μs Lightning Surge; More Confidence For Serious Users EMC - Meets EN61326-1:2006 (EN55011, EN61000-3-2/-3 & EN61010-4-2/-3/-4/-5/-6/-8/-11 ) 3~ UNBALANCED-LOAD POWER W - Measures Unbalanced-Load Power Thru Discrete Measurements By Only One Single Pair Of Jaws For Lower Cost Of Ownership & Better Portability TOTAL POWER FACTOR - PF = W / VA Is Used For Nowadays Power-Systems With Harmonics FULL POWER PARAMETERS - Dual Display Measurements Of "W + PF", "VA + PF", Or "VAR + PF" On 3~ Balanced-Load & 1~ Power AutoVA FEATURE - Sophisticated MCU Controlled Auto-Selection Of ACA, ACV Or DCV Shortens The Time To Measure And Increases The Ease Of Use DISPLAY BACKLIGHT - For Easy Viewing In The Dark
