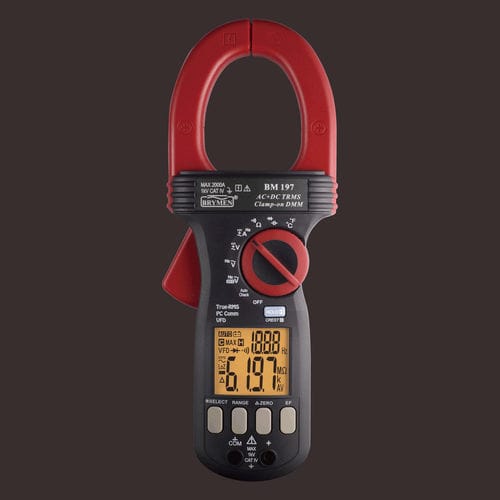

6000 count digital clamp multimeter BM197
portable1000 V2000 A

6000 count digital clamp multimeter - BM197 - BRYMEN - portable / 1000 V / 2000 A
6000 count digital clamp multimeter - BM197 - BRYMEN - portable / 1000 V / 2000 A
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
1000 V
Max current
2000 A
Safety rating
cat IV
Additional features
with thermometer
Protection level
rugged, EMC
Other characteristics
AC/DC, true RMS
Max DC voltage

Max.: 1,000 V

Min.: 6 V

Max AC voltage

Max.: 1,000 V

Min.: 6 V

Max DC current

Max.: 2,000 A

Min.: 200 A

Max AC current

Max.: 2,000 A

Min.: 200 A

Max resistance measure

Max.: 40,000,000 Ohm

Min.: 600 Ohm

Max capacity measure

Max.: 2,000,000 nF

Min.: 60 nF

Max frequency measure

Max.: 1,999 Hz

Min.: 10 Hz

DC voltage precision

0.5 %, 1.4 %

AC voltage precision

1.2 %, 1.4 %

DC current precision

2 %, 3 %

AC current precision

2 %, 2.5 %, 3 %

Resistance precision

Max.: 2.3 %

Min.: 0.5 %

Process temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Length

264 mm
(10.39 in)

Width

97 mm
(3.82 in)

Height

43 mm
(1.69 in)

Weight

608 g
(21.45 oz)

Description

For 55mm Large Conductor Size And Ultimate Safety For 2000A Areas! VFD V/Hz, Ghost-Voltage-Buster, True-rms & PC-Comm Interface for Advanced Users! RUGGED & DURABLE - High-Impact Fire-Retarded Enclosure With Battery Compartment & Access Door DIODE TEST - For Testing Diodes & Rectifiers CAPACITANCE - 6 Auto-Ranges Up To 2000μF To Measure Motor Capacitors TYPE-K TEMPERATURE - Selectable °0 And °F Readings; Comes With BKP60 Bead Probe AUTO-POWER-OFF - Extends Battery Life DATA HOLD - Freezes The Displaying Reading For Later View 5ms CREST-MAX - Captures In-Rush Peak Signals Of ACA Or ACV As Short As 5ms In Duration HIGH CURRENT (ACA) Hz - Measures Non-Invasive ACA Frequency VIA Clamp Jaws HIGH VOLTAGE (ACV) Hz - Measures Noisy High Voltage ACV Frequency VIA Test Leads 0.5% DCV BASIC ACCURACY - DCV 4 Auto-Ranges To 1000V; ACV 4 Auto-Ranges To 1000V EF-DETECTION - Both Non-Contact (NCV) & Single-Probe Voltage Detection For Identifying Live Lines RELATIVE ZERO MODE - For Convenient Readings Comparison & Offset TRANSIENT PROTECTION - Up To 12kV 1.2/50μs Lightning Surge; More Confidence For Serious Users PC-COMM INTERFACE CAPABILITY - Optional Purchase RS232C+USB Cables With Data Recording PC Software For Win98/NT4/2K/XP/Vista/Win7 EMC - Meets EN61326-1:2006 (EN55022, EN61000-3-2/-3 & EN61000-4-2/-3/-4/-5/-6/-8/-11) BACKLIGHTED LCD DISPLAY - For Easy Viewing In The Dark GHOST-VOLTAGE-BUSTER - LoZ Drains Ghost/ Stray Voltages Leaving Only Hard Signals On Meter Readings FULLY AUTO-RANGING DMM - Shortens The Time To Measure And Increases The Ease Of Use
