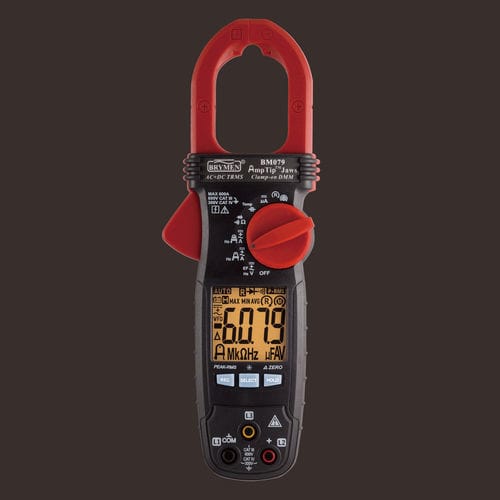

6000 count digital clamp multimeter BM079portable600 V600 A
Add to favorites
Compare this product
Characteristics
- Display
- 6000 count digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 600 A
- Safety rating
- cat III
- Additional features
- with thermometer
- Protection level
- rugged, EMC
- Power supply
- AAA LR03 batteries
- Applications
- industrial, for HVAC
- Other characteristics
- AC/DC, autorange
- Max DC voltage
600 V
- Max AC voltage
600 V
- Max DC current
0.2 A, 2 A, 60 A
- Max AC current
60 A, 600 A
- Max resistance measure
Max.: 60,000 Ohm
Min.: 600 Ohm
- Max capacity measure
200 µF, 2,500 µF
- DC voltage precision
1 %, 1.2 %
- AC voltage precision
1 %, 1.2 %
- DC current precision
1 %, 1.5 %
- AC current precision
Max.: 2.7 %
Min.: 1.5 %
- Resistance precision
1 %
- Process temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Length
223 mm
(8.78 in)- Width
76 mm
(2.99 in)- Height
37 mm
(1.46 in)- Weight
234 g
(8.25 oz)
Description
Innovative AmpTip Jaws For Slim-Conductors In CAT-III 600V Areas
Ergonomic All-In-One AC/DC 600A, 3-Terminal RST Phase-Rotation, HVAC. AC+DC TRMS
DCμA - For HVAC Flame Sensors
Testing Via Test Probes
PHASE ROTATION - Dual Sensitivity Modes For
Both Motors And Supply Systems
CAPACITANCE - 2 Auto-Ranges Up To 2500μF
To Measure Motor Capacitors
RESISTANCE - 3 Auto-Ranges Up To 60kΩ
Best Resolution 0.1Ω At 600Ω Range
ERGONOMIC & STREAMLINE BODY - Also Comes With A Soft Pouch
For Easy Carrying & Protection
1.0% DCV BASIC ACCURACY - DCV Up To 600V;
ACV Up To 600V
RELATIVE ZERO & DC_ZERO - For Convenient Readings Comparison
As Well As DC Jaws Hysteresis Offset
DATA HOLD - Freezes The Displaying
Reading For Later View
RUGGED & DURABLE - High-Impact Fire-Retarded
Enclosure With Battery
Compartment & Access Door
TRANSIENT PROTECTION - Up To 6kV 1.2/50μs Lightning Surge;
More Confidence For Serious Users
EMC - Meets EN61326-1:2006(EN55022,
EN61000-3-2/-3 & EN61000-4-2/-3/-4/-5/-6/-8/-11 )
BACKLIGHTED LCD DISPLAY - For Easy Viewing In The Dark
RECORD MAX / MIN / AVG - Records Max, Min, & Calculates AVG
Readings Over Time. Auto-Ranging
IN-RUSH PEAK-RMS - Captures In-Rush Peak RMS Readings
At Durations As Short As 80ms
AUTO-POWER-OFF - Extends Battery Life
FULLY AUTO-RANGING DMM - Shortens The Time To Measure
And Increases The Ease Of Use
