4000 count digital clamp multimeter BM111s
portable600 V600 A

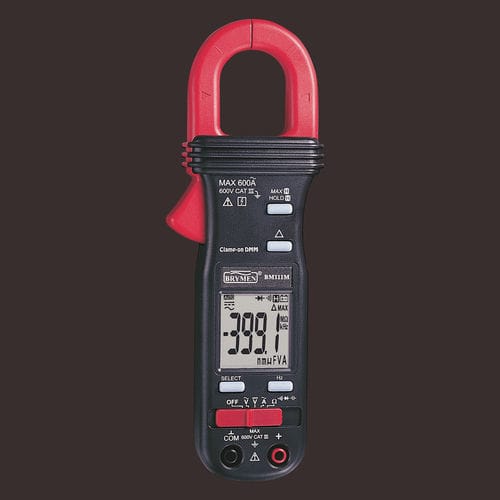

4000 count digital clamp multimeter - BM111s - BRYMEN - portable / 600 V / 600 A
4000 count digital clamp multimeter - BM111s - BRYMEN - portable / 600 V / 600 A
Add to favorites
Compare this product

Characteristics

Display
4000 count digital
Form
portable
Max voltage
600 V
Max current
600 A
Safety rating
cat III
Additional features
frequency
Protection level
EMC
Other characteristics
AC/DC, true RMS
Max DC voltage

Min.: 400 mV

Max.: 6,000,000 mV

Max AC voltage

Min.: 4 V

Max.: 600 V

Max AC current

40 A, 400 A, 600 A

Max resistance measure

Min.: 400 Ohm

Max.: 40,000,000 Ohm

Max capacity measure

Min.: 50 nF

Max.: 3,000,000 nF

DC voltage precision

0.3 %, 0.5 %, 1 %

AC voltage precision

1.5 %, 2 %

AC current precision

1.5 %

Resistance precision

0.6 %, 0.8 %, 1 %, 2 %

Process temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Length

190 mm
(7.48 in)

Width

63 mm
(2.48 in)

Height

32 mm
(1.26 in)

Weight

139 g
(4.9 oz)

Description

Popular Models Gains Access To Tighter Places Thru New Slim Jaws! Cx For Motor Capacitors, & Captures 30ms In-Rush Current! Plus Improved Display Digits & Cat III 600V Safety On Single Display Models! 30ms MAX HOLD - Captures In-Rush RMS Values Of ACA Or ACV As Short As 30ms In Duration DATA HOLD - Freezes The Displaying Reading For Later View LIGHT WEIGHT & SMALL BODY - Also Comes With A Soft Pouch For Easy Carrying & Protection HIGH CURRENT (ACA) Hz - Measures Non-Invasive ACA Frequency VIA Clamp Jaws HIGH VOLTAGE (ACV) Hz - Measures Noisy High Voltage ACV Frequency VIA Test Leads FAST AUDIBLE CONTINUITY - For Quick Open-Short Tests On Switches, Fuses, And Wires CAPACITANCE - 6 Auto-Ranges Up To 3000μF To Measure Motor Capacitors DIODE TEST - For Testing Diodes & Rectifiers RESISTANCE - 6 Auto-Ranges Up To 40MΩ With 600V Protection TRANSIENT PROTECTION - Up To 6kV 1.2/50μs Lightning Surge; More Confidence For Serious Users EMC - Meets EN61326(1997, 1998/A1), EN61000-4-2(1995, 2000/A2), & EN61000-4-3(2002) 0.5% DCV & ACV BASIC ACCURACY - DCV 5 Auto-Ranges To 600V; ACV 4 Auto-Ranges To 600V ENLARGED SINGLE DISPLAY - Enlarged Display Digits For Single Display Models FULLY AUTO-RANGING DMM - Shortens The Time To Measure And Increases The Ease Of Use
