6000 count digital clamp multimeter BM198PV
portable1000 V1500 V

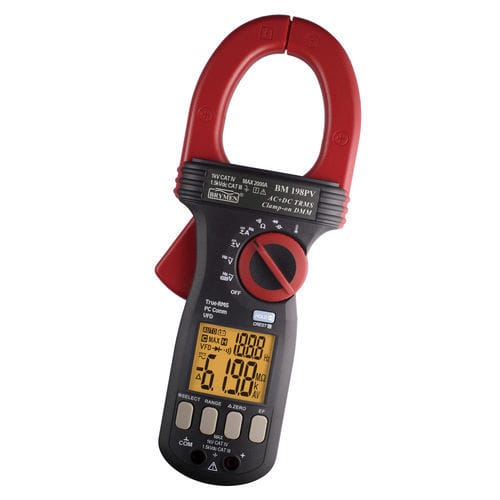

6000 count digital clamp multimeter - BM198PV - BRYMEN - portable / 1000 V / 1500 V
6000 count digital clamp multimeter - BM198PV - BRYMEN - portable / 1000 V / 1500 V
6000 count digital clamp multimeter - BM198PV - BRYMEN - portable / 1000 V / 1500 V - image - 2
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
1000 V, 1500 V
Max current
2000 A
Safety rating
cat III, cat IV
Additional features
frequency, with thermometer
Power supply
AA LR6 batteries
Applications
for photovoltaic applications
Other characteristics
AC/DC, true RMS
Max DC voltage

Max.: 1,500 V

Min.: 6 V

Max AC voltage

Max.: 1,500 V

Min.: 6 V

Max DC current

Max.: 2,000 A

Min.: 20 A

Max AC current

Max.: 2,000 A

Min.: 20 A

Max resistance measure

Max.: 40,000,000 Ohm

Min.: 600 Ohm

Max capacity measure

Max.: 2,000,000 nF

Min.: 60 nF

DC voltage precision

0.5 %

AC voltage precision

1.2 %

DC current precision

2 %, 3 %

AC current precision

2 %, 2.5 %, 3 %, 3.5 %

Resistance precision

0.5 %, 0.8 %, 1.2 %, 2.3 %

Process temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Length

264 mm
(10.39 in)

Width

97 mm
(3.82 in)

Height

43 mm
(1.69 in)

Weight

608 g
(21.45 oz)

Description

2000A for CAT III 1500Vdc Photovoltaics & More… Comes UL Listed Safety! Dual Listed CAT IV 1kV Utility Safety, DC+AC True-RMS, VFD V+Hz, and PC-Comm for Advanced Users! Direct Use on Lives - Apply to and Removal from Hazardous Live Uninsulated Conductors Permitted Fast Audible Continuity - Quick Open-short Tests on Switches, Fuses, and Wires Clamp-on Hz - Measures Non-Invasive Current Frequency Via Clamp Jaws; 20Hz to 400Hz DCA, ACA, DC+ACA - Each 2 Ranges: 200.0A and 2000A DCV, DC+ACV - Each 4 Ranges: DCV 6.000V to 1500V; DC+ACV 6.000V to 1000V UL Listed CAT IV 1kV - Utility Applications for CAT IV Areas Dual UL Listed CAT III 1500Vdc - For Photovoltaics, Battery Banks, Metros, and Other DC Systems Applications AC-Coupled ACV - 4 Ranges: 6.000V to 1000V AC Line-Level Hz - Measures Noisy High Voltage Frequency via Test leads; 10Hz to 1999Hz VFD-ACV + VFD-Hz - VFD-ACV 4 Ranges: 6.000V to 1000V; VFD-Hz 10 to 400Hz PC-Comm Interface Capability - Optional Purchase USB Cable & PC Software Set VFD (Low Pass Filter) - Measures Fundamental V and Hz of Most Variable-Frequency-Drives EMC EN61326-1 Compliance - Superior Immunity to Interferences with Reliable Operations and Readings Fast Auto-Ranging - Shortens the Time to Measure and Increases the Ease of Use Back-Lighted LCD - Easy Display Viewing in the Dark
