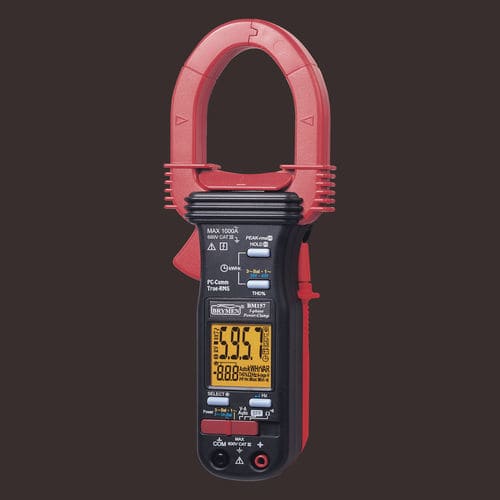

6000 count digital clamp multimeter BM157s
portable600 V1000 A

6000 count digital clamp multimeter - BM157s - BRYMEN - portable / 600 V / 1000 A
6000 count digital clamp multimeter - BM157s - BRYMEN - portable / 600 V / 1000 A
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V
Max current
1000 A
Safety rating
cat III
Additional features
frequency, total harmonic distortion THD
Protection level
EMC
Applications
industrial
Other characteristics
AC/DC
Max DC voltage

600 V

Max AC voltage

6,000 V

Max AC current

40 A, 400 A, 1,000 A

Max resistance measure

Max.: 1,000 Ohm

Min.: 0 Ohm

DC voltage precision

0.5 %

AC voltage precision

0.5 %, 1.5 %, 2.5 %

AC current precision

1 %, 2 %, 2.5 %, 3 %

Resistance precision

1 %

Length

224 mm
(8.82 in)

Width

78 mm
(3.07 in)

Height

40 mm
(1.57 in)

Weight

224 g
(7.9 oz)

Description

kWHr Recording & 3~ Unbalanced-Load Power Made Handy! Lower Cost Of Ownership And Better Portability Thru Only One Pair Of Jaws! Easy Display-Guide On Both 3-Wire And 4-Wire Unbalanced-Load Measurements! 65ms PEAK-RMS HOLD - Captures In-Rush RMS Values Of ACA Or ACV As Short As 65ms In Duration DATA HOLD - Freezes The Displaying Reading For Later View BATTERY COMPARTMENT - With Access Door For Easy Battery Replacement PROBE HOLDERS - Built-In Probe Storage Holders THD%-F - Total Harmonic Distortion-Fundamental Dual Display Measurements Of "ACV + THD%-F" Or "ACA + THD%-F" kWHr RECORDING - Records Both 3~ Balanced-Load & 1~ Kilo-Watt-Hour Readings With Last Memory Recall A-lags-V INDICATION - Unambiguous Indications Of Current Lags Voltage In Inductive Circuits HIGH CURRENT Hz - Measures Non-Invasive ACA Frequency VIA Clamp Jaws HIGH VOLTAGE Hz - Measures Noisy High Voltage ACV Frequency VIA Test Leads 250μs FAST AUDIBLE CONTINUITY - For Quick Open-Short Tests On Switches, Fuses, And Wires RESISTANCE - Up To 999.9 OHMS, 0.1 OHM Resolution With 600V Protection TRANSIENT PROTECTION - Up To 6kV 1.2/50μs Lightning Surge; More Confidence For Serious Users EMC - Meets EN61326(1997, 1998/A1), EN61000-4-2(1995, 2000/A2), & EN61000-4-3(2002) 3~ UNBALANCED-LOAD POWER W - Measures Unbalanced-Load Power Thru Discrete Measurements By Only One Single Pair Of Jaws For Lower Cost Of Ownership & Better Portability TOTAL POWER FACTOR - PF = W / VA Is Used For Nowdays Power-Systems With Harmonics FULL POWER PARAMETERS - Dual Display Measurements Of "W + PF", "VA + PF", Or "VAR + PF" On 3~ Balanced-Load & 1~ Power
