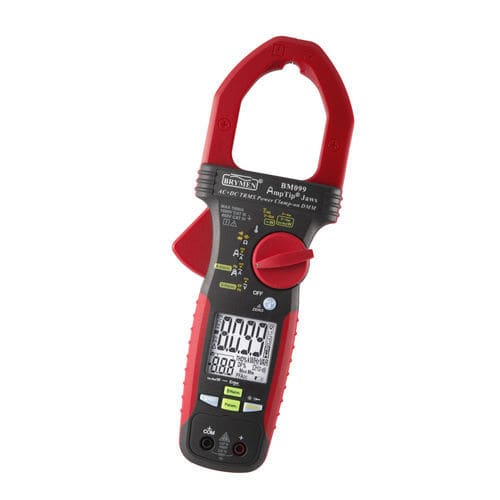

Digital clamp multimeter BM099
portable1000 V600 V

Digital clamp multimeter - BM099 - BRYMEN - portable / 1000 V / 600 V
Digital clamp multimeter - BM099 - BRYMEN - portable / 1000 V / 600 V
Digital clamp multimeter - BM099 - BRYMEN - portable / 1000 V / 600 V - image - 2
Add to favorites
Compare this product

Characteristics

Display
digital
Form
portable
Max voltage
600 V, 1000 V
Max current
1000 A
Safety rating
cat III, cat IV
Additional features
with thermometer, total harmonic distortion THD
Power supply
AAA LR03 batteries
Other characteristics
AC/DC, TRMS
Max DC voltage

600 V, 999.99 V

Max AC voltage

600 V, 999.99 V

Max DC current

40 A, 999.99 A

Max AC current

40 A, 999.99 A

Max resistance measure

Min.: 600 Ohm

Max.: 6,000,000 Ohm

Max capacity measure

Min.: 10 µF

Max.: 1,000 µF

DC voltage precision

0.5 %

AC voltage precision

0.5 %, 2.5 %, 3.5 %

DC current precision

2 %

AC current precision

1.5 %, 2 %

Resistance precision

1 %

Process temperature

Min.: -10 °C
(14 °F)

Max.: 50 °C
(122 °F)

Length

258 mm
(10.16 in)

Width

94 mm
(3.7 in)

Height

44 mm
(1.73 in)

Weight

394 g
(13.9 oz)

Description

Individual Harmonics THD%, DF%, and Volts/Amps Readings! Dual-display Convenience! Added DC Component Hdc Harmonics in AC+DC Mode! 3-Phase Power both Balanced and Unbalanced Loads! AmpTip® Jaws PowerClamp™ + 25th Harmonics! 1000A with AC+DC TRMS for CAT-III 1kV! BeepLit™ Continuity, °C/°F, Cx, EF-Detection NCV, Clamp-on Hz, MinMax Record, Hold, and Relative Features! Direct Use on Lives - Apply to and Removal from Hazardous Live Uninsulated Conductors Permitted Large 51mm AmpTip® Jaws - Easy Measure on Both Large and Slim Conductors Type-K Temperature - Measures from -40.0 °C to 400.0 °C or -40.0 °F to 752.0 °F, Selectable Capacitance - Measures Start & Run Motor Capacitors from 10.0µF to 999.9µF Resistance - 2 Ranges @ 600.0Ω and 6.000kΩ Fast Beeplit™ Continuity - Quick Open-short Tests with Backlight Effects on Switches, Fuses, and Wires High Accuracy 0.5% DCV - 2 Ranges @ 60.00V and 999.9V Direct LPF ACV - For Noisy Electrical and VFD Signals; 2 Ranges @ 60.00V and 999.9V Diode Test - Quick Checks on Diodes and Rectifiers High Bandwidth AC+DCV - Range @ 999.9V; Bandwidth up to 3kHz AmpTip® Current - Measures at Jaw Tip for Small-sized Thin Conductors up to 40.00A Regular Current - Measures at Jaws Center for Regular Conductors up to 999.9A Clamp-on Hz - Measures Non-Invasive Current Frequency Via Clamp Jaws; 40Hz to 70Hz AC Line-Level Hz - Measures Noisy High Voltage Frequency via Test leads; 40Hz to 70Hz EF-Detection - Both Non-Contact (NCV) & Single-Probe Voltage Detection for Identifying Live Lines Convenient Dual Display - Volt/Amp+THD%, Volt/Amp+DF%, (AC)VA/W/VAR+PF, and (AC+DC)VA+DCA REC MAX/MIN - Compares and Records Extreme Display Readings
